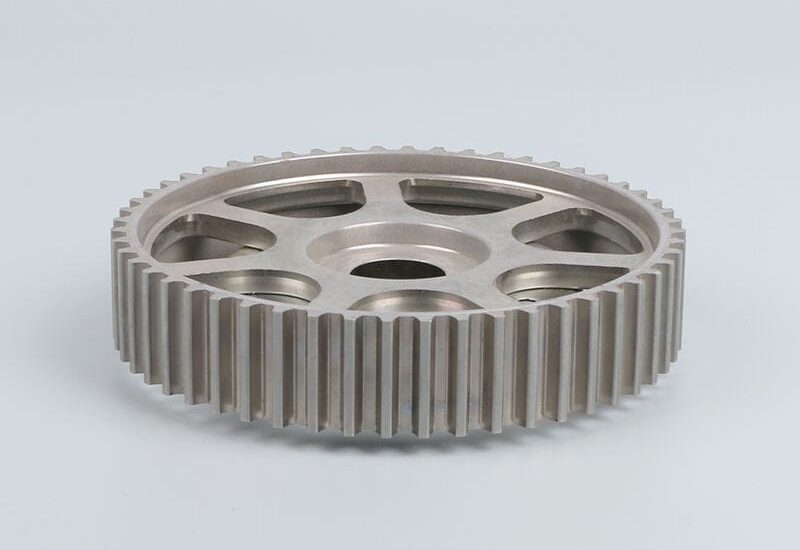

China Sintered Timing Belt Pulley
BLUE timing belt pulleys are precision-designed with tight tolerances of ±0.01mm, ensuring reliable, quiet, and smooth belt operation. We offer over 100 standard sintered timing pulleys with no tooling fee to suit your car engine.
Why Choose BLUE?
We have established ourselves as a dependable supplier of timing belt pulleys, offering free mold design service, fast shipping, and competitive prices.
BLUE High Quality Standards
BLUE guarantee your timing belt pulleys quality with ISO 9001:2015 certified quality management system. We provide a one-year warranty on your products.
Standard Timing Pulley Shop
BLUE has a full range of standard timing pulleys in stock for fast delivery. Visit our standard parts shop to find the exact match for your applications.

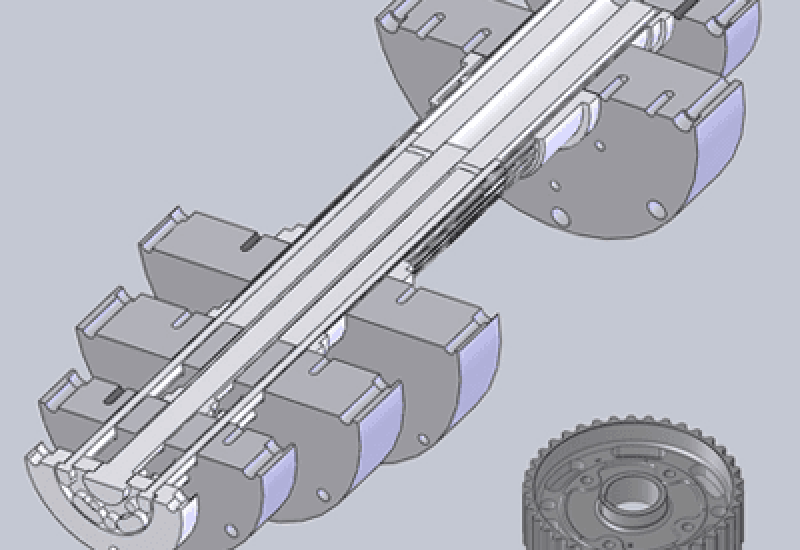

Free Mold Design Service
With over 20 years of expertise in mold design, BLUE offers free, high-precision mold design services to meet your customized needs. Let our experience work for you!
BLUE Timing Belt Pulley
BLUE provides a broad selection of high-quality timing belt pulleys, available in various tooth profiles, sizes, and surface treatments to suit diverse applications.
Metric Timing Belt Pulleys
BLUE metric timing pulleys undergo heat treatment for good rust resistance and hardness up to HRB75.
Timing Pulley
BLUE timing pulleys are made of FC-O208 and have good mechanical properties after high temperature sintering.
Large Diameter Timing Belt Pulleys
Our large diameter timing belt pulleys are made of powder metallurgy, which has high material utilization and can ensure precise synchronization of the machine.
Small Timing Belt Pulleys
BLUE's small timing belt pulleys offer high quality consistency, tight dimensional tolerances, minimal secondary machining requirements, and uniform density.
Custom Timing Pulley
BLUE offers custom timing pulleys with good mechanical strength, precise tooth profiles and tolerances, and a variety of surface treatments to choose from.
Auto Timing Belt Pulley
Our aoto timing belt pulleys allow customization of addendum circle and center hole size, weight reduction holes, and surface treatment processes
BLUE Timing Pulley Advantages
Under the strict control of IATF 16949:2016 standards, our timing pulleys meet the highest quality requirements.
Our timing pulleys are precisely manufactured with a core hole tolerance of ±0.015 mm and verticality within 0.025 mm, ensuring a high-precision fit with the crankshaft.
BLUE offers timing belt pulleys with both trapezoidal profiles (including MXL, XL, L, H, XH, and XXH series) and curvilinear tooth profiles such as HTD (High Torque Drive), GT2, and GT3.
To enhance timing pulleys mechanical properties, we provide a variety of surface treatments, including steam treatment, electroplating, resin impregnation, and Dacromet.
Standard Timing Belt Pulley
As a leading powder metallurgy supplier, we offer a wide range of standard timing belt pulleys with no mold fees and fast delivery.
Our standard timing belt pulleys cover numerous auto models, including Audi, VW, Toyota, Renault, Lancer, Opel Astra, Chevrolet, Bora, Beetle, etc.
Furthermore, BLUE standard timing pulleys include trapezoidal and curved tooth profiles.
Download our timing pulley catalog for free to find the exact match for yours.
Advantages of Sintered Timing Pulley
High Material Utilization
Sintered timing belt pulleys are made from metal powder without the need to cut excess material, ensuring efficient use of resources.
Reduced Secondary Processing
Powder metallurgy timing pulleys are pressed and formed with high tooth profiles accuracy, requiring minimal secondary processing.
Tight Tolerance
Sintered timing belt pulley molds are highly precise, achieving minimum tolerances of ±0.01 mm after the sizing process.
Cost-Effective
Compared to machined timing pulleys, which waste more raw material and are more expensive, powder metallurgy offers a more economical solution.
Applications of Timing Pulley
Automotive Engines
Timing belts transfer power between the engine crankshaft and camshaft, ensuring that the engine valves open and close at the correct times.
Industrial Machinery
Timing belt pulleys enable stable, non-slip power transmission, ensuring the synchronous and precise movement of machines.
Office Equipment
Timing belt pulleys facilitate the precise movement of the printhead and paper handling mechanisms of printers and copiers.
Custom Timing Belt Pulley Specifications
The following table shows BLUE’s production capabilities for timing belt pulleys, including tolerance and diameter range, hardness, density, surface treatment, etc.
| Attribute | Value |
|---|---|
| Material | MPIF 35 FC-0205, FC-0208, FN-0205, FD-0208 |
| Density | 6.6-7.0g/cm3 |
| Hardness | 65-90 HRB |
| Surface finish | Ra 0.8μm to Ra 1.6μm |
| Surface Treatment | Steam Treatment, Dacromet, Electroplating |
| diameters | ⌀30 to ⌀150mm |
| Tolerance | ±0.01 mm |
Timing Belt Pulley Manufacturing Process
Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.
Designing
Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.
Tooling
Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.
Mixing
Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.
Compacting
Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.
Sintering
Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.
Sizing
Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.
Tumbling
Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.
Machining
Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.
Blackening
Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.
Hardening
Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.
Inspecting
The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.
Packaging
BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.
BLUE's Timing Pulley Manufacturing Equipment
BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace, sizing press, CNC machining equipment, hardening furnace, etc.
- Compacting
- Sintering
- Inspecting
- Machining
- Packaging
Related Product
As the largest supplier of powder metallurgy standard parts in China, BLUE offers a wide range of standard auto parts with no mold fees.
Water Pump Flange
Our pump flanges have the advantages of multiple models, tight tolerances and high mechanical strength.
Water Pump Pulley
Our water pump pulleys feature tight tolerances, high apparent density, and superior mechanical strength.
Oil Pump Gear
Our oil pump gearss have good surface finish, tight torlerances and excellent position tolerances to achieve best engine performance.
FAQ's
Here are some of the questions we get asked often. If yours isn’t answered, don’t hesitate to contact us, we’re happy to help!
A timing pulley is a toothed, grooved wheel that forms a timing system when paired with a timing belt.
It transmits synchronous rotational motion between shafts, ensuring precise timing and preventing slippage in mechanical systems.
In an automobile engine, the timing pulley system synchronizes the rotation of the crankshaft and camshaft, ensuring that the engine valves open and close at the proper times and in the correct sequence.
