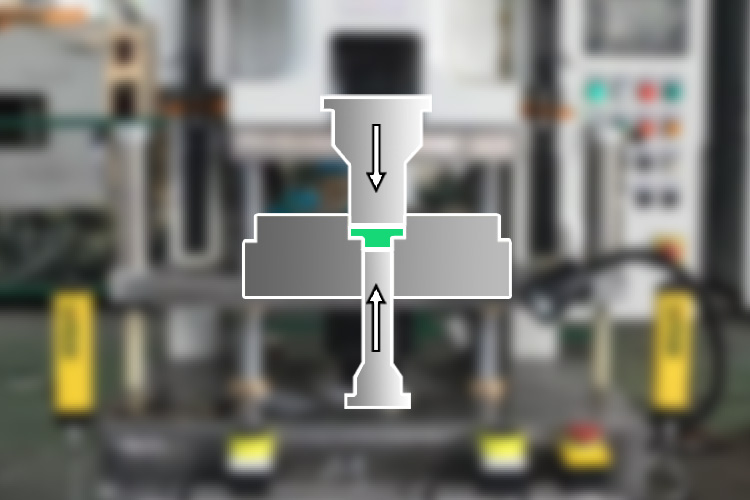

What is Sizing in Powder Metallurgy?
Sizing is one of secondary operations in powder metallurgy. It re-presses the sintered parts to achieve higher accuracy. Why do that? This is because during
The manufacturing of powder metallurgy parts starts with compaction. This process applies intense pressure to create customized parts that have specific strength, density, and complex shapes.
In this blog, we will introduce you to the details of compaction in powder metallurgy and explore types of compacting process.
There are four primary stages to the powder metallurgy compaction process.
Four Stages of Compacting Process in Powder metallurgy
First, put metal powder into the die. It is important to fill the mold evenly to ensure the customized part with consistent density and mechanical properties.
After filling, pressing the metal powder through a punch creates a ‘green compact’ or ‘green part’. This is the shaped piece before it’s heated for full strength and density.
Uniform pressure throughout the powder metallurgy die is important. Because any variations can cause uneven density, which might lead to weak spots and internal cracks in the part.
Also, the applied pressure needs to be strong enough and maintained long enough to bond the metal particles mechanically. This ensures the material retains its shape without damaging the equipment or deforming the part.
Half-finished part are carefully removed from the mold using a down punch and die. This process is refer as demolding. During demolding, what matters most is the time. If too fast, it may cause the half-finished part to tear or have uneven density. If too slow, it will affect the overall production efficiency.
There are three ways to remove the half-finished parts:
To enhance workplace safety, manufacturers equip their machinery with ABS detection rings. These devices are key in preventing injuries to workers’ fingers.
Die compaction applies pressure from a punch in one direction, making it great for producing gears, bushings, and parts for cars. It is efficient and produces consistent, uniform parts in large volumes.
CIP exerts pressure uniformly from all directions using a fluid medium within a flexible mold. This method ensures uniform density and mechanical properties and prevent the directional weaknesses common in die compaction.
It’s especially useful for making complex shapes and high-density parts required in aerospace and medical fields.
In HIP, the green compact is placed inside a flexible, sealed container, often made of metal or glass. This container is then exposed to high pressures and temperatures evenly from all directions inside a pressure vessel. An inert gas, typically argon, heats and pressurizes the container.
HIP is important for manufacturing critical aerospace, nuclear, and medical components that demand utmost reliability and strength.
Source: Stanford Advanced Materials
The pressure and how long it’s applied vary based on the metal powder used, the desired density, and the part’s complexity. For instance, aluminum requires less pressure than alloy steel due to its softer nature.
During powder mixing, lubricants combine with alloy elements to fill gaps between powder particles, thereby improving density and compressibility during compaction.
These lubricants also remain on the mold’s surface during compacting process in powder metallurgy, greatly reducing friction and wear on the mold.
The speed at which the pressure is applied and released can affect the density and integrity of the part. So it’s important to find a balance that maximizes productivity without increasing the risk of defects.
Pros | Cons |
High Material Efficiency | Limited Material Compatibility |
It reduces waste by turning powder into dense materials effectively. | Some materials are not suitable for compacting due to their properties. |
Complex Shapes | High Initial Costs |
This process allows for the creation of intricate geometries that other techniques cannot achieve. | The equipment and setup required for compaction are often expensive. |
High Precision | Lower Strength |
The process ensures precise dimensions and adherence to tight tolerances. | Compacted parts generally have lower strength compared to those made through machining |
Customized Properties | Porosity Issues |
Adjustments during the process can tailor material properties to specific needs. | Compacting may introduce porosity in the parts, which can compromise their strength. |
Energy Efficient | Size Limitations |
More energy-efficient than melting-based processes. | The size of parts is constrained by the capabilities of the press and die used |
Mechanical presses, primarily used for die compaction, ensure precise dimensional tolerances during powder metallurgy compaction process. Known for their high-speed production, these presses are optimal for creating simpler parts.
These are versatile, ideal for both die compaction and Cold Isostatic Pressing (CIP). They offer precise pressure control, making them perfect for forming complex profiles and achieving higher densities in die compaction. For CIP, hydraulic presses provide even pressure across a flexible mold, promoting uniform compaction.
Including both CIP and HIP machines, they are specialized for isostatic compaction methods.
Automated feeding systems deliver powder into the dies with precision and consistency, which matters for maintaining uniform density and quality across all compacted parts.
Control systems monitor and adjust the compaction parameters in real-time. And it ensure that compaction process adheres to the required specifications.
Below is a comparison of the main compacting equipment.
Equipment | Advantages | Disadvantages |
l Mechanical Compaction Equipment | High-speed production Cost-effective for simpler component | Limited to less complex geometries Less flexible in pressure adjustments |
l Hydraulic Compaction Equipment | Precise pressure control Suitable for complex shapes and higher densities Versatile for various compaction methods. Low cost. | Slower production speeds |
l Isostatic Compaction Equipment | High density and uniform material properties. Ideal for high performance applications | Very high initial costs Specialized setup and Slow |
In China, the primary equipment used for powder metallurgy compaction includes mechanical and hydraulic compactors. When parts require side forming, additional machining steps are necessary.
Half-finished parts from powder compaction process often encounter internal cracks, which are not detectable by visual inspection. These problems usually don’t show up until after the sintering process, which can result in a lot of wasted materials. This problem need to be addressed in the future.
We believe that Isostatic pressing is a promising future technique. However, its widespread adoption is currently hindered by the high costs of the necessary machinery. If the costs could be reduced and production capacity increased, it would certainly be favored by many powder metallurgy manufacturers.
In powder metallurgy process, compacting pressures vary depending on the metal type and the desired characteristics of the part.
For instance, softer metals typically require pressures between 200 and 400 MPa to ensure effective compaction.
Harder metals such as steel demand higher pressures, ranging from 400 to 800 MPa.
To reduce porosity, optimizing particle size distribution and compaction parameters is crucial. Using techniques like HIP can significantly enhances the diffusion process of bonded metal particles, thereby reducing porosity.
Taking the data only as an example of a 25-ton fast-speed compacting machine, the product is in the shape of a round barrel:
Japan compacting machine: 50~60pcs/min
German compacting machine: 40~55pcs/min
American compacting machine: 40-50pcs/min
China compacting machine: 30~40pcs/min
Data is for reference only!
Yes, if done improperly, there is a risk of the mold exploding, eventually causing personal injury. But if you strictly follow the work instructions, this problem can be avoided.
The key depends on the size of the production. Buckets are generally divided into:
