ABS Ring Supplier - BLUE
BLUE offers you over 1,000 standard sintered ABS rings, no need mold charges, covering Toyota, Audi, Hyundai, Mazda, Peugeot, Volkswagen, Ford, etc.
Why Choose BLUE?
We have established ourselves as a trusted supplier of ABS sensor ring, providing free mold design service, free samples, fast shipping, and competitive prices from China.
BLUE High Quality Standards
BLUE assurethe quality of your ABS ring with an ISO 9001:2015 certified quality management system. Free samples are available for testing.
Standard ABS Ring Shop
BLUE has a full range of ABS sensor rings in stock for fast delivery. Visit our standard parts shop to find the exact match for your applications.
Free Mold Design Service
With over 20 years of expertise in mold design, BLUE offers free, high-precision mold design services to meet your customized needs. Let our experience work for you!
BLUE ABS Sensor Rings in China
BLUE offers you a series of standard sintered ABS sensor rings with excellent mechanical strength, hardness and service life.
ABS Sensor Ring
The ABS sensor ring is a round component that transmits the wheel speed to the vehicle's anti-lock braking system.
ABS Tone Ring
BLUE sintered ABS tone ring is made of iron-based powder, which has good strength and toughness after high temperature sintering.
ABS Reluctor Ring
When the ABS reluctor ring passes close to the sensor, which is a magnet, it generates an electric field that sends a pulse signal to the ABS control system.
Wheel Speed Sensor Ring
BLUE wheel speed sensor rings are made of MPIF 35 F-0000 and have good mechanical strength and corrosion resistance after surface treatment.
ABS Sensor Tone Ring
ABS sensor tone ring and sensor send signals to the anti-lock braking system, indicating the speed of each wheel and helping the system detect if any wheels are locked.
ABS Speed Sensor Ring
Our ABS speed sensor ring has a sintered density of 7.0g/cm³ and a tight tolerance of ±0.02mm after the sizing process
ABS Wheel Speed Sensor Tone Ring
BLUE ABS wheel speed sensor tone ring can be customized with an outer diameter ranging from 30 to 220mm and 30 to 100 teeth.

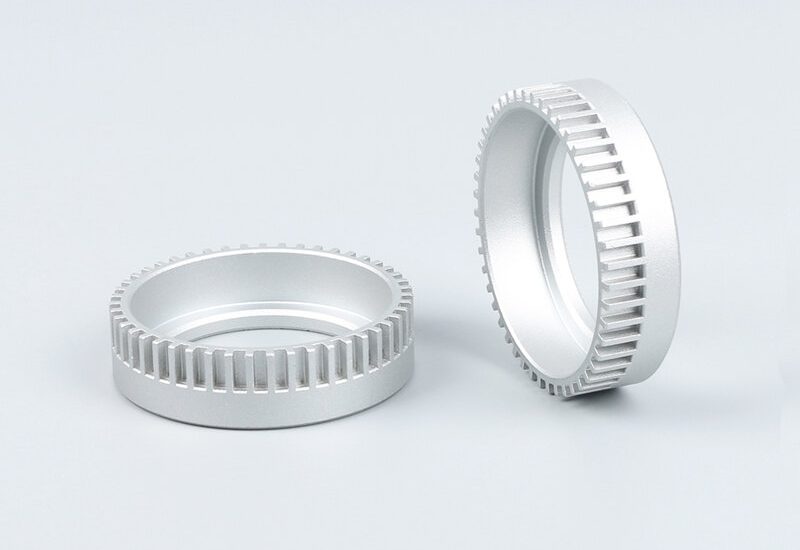

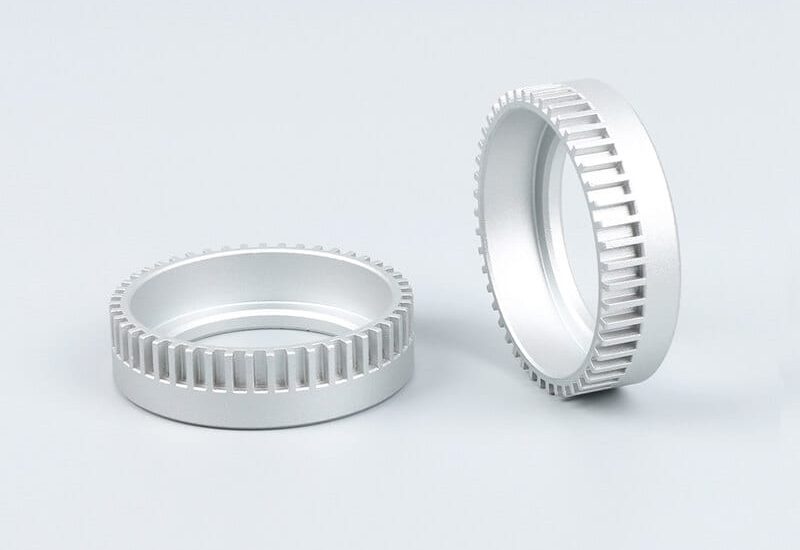

ABS Sensor Touching Ring
Our powder metallurgy ABS sensor touching ring has good quality consistency and long service life
ABS Wheel Speed Sensor Ring
BLUE ABS wheel speed sensor ring transmits wheel speed data, prevents wheel lock, and ensures driving safety.
BLUE ABS Ring Advantages
BLUE produces high-quality ABS rings under strict control of IATF 16949 2016.
The density of our ABS tone rings is as high as 7.0g/cm³, with radial tensile strength greater than 300 MPa.
Our ABS sensor rings come in a wide variety, with tight tolerances, covering most vehicle models.

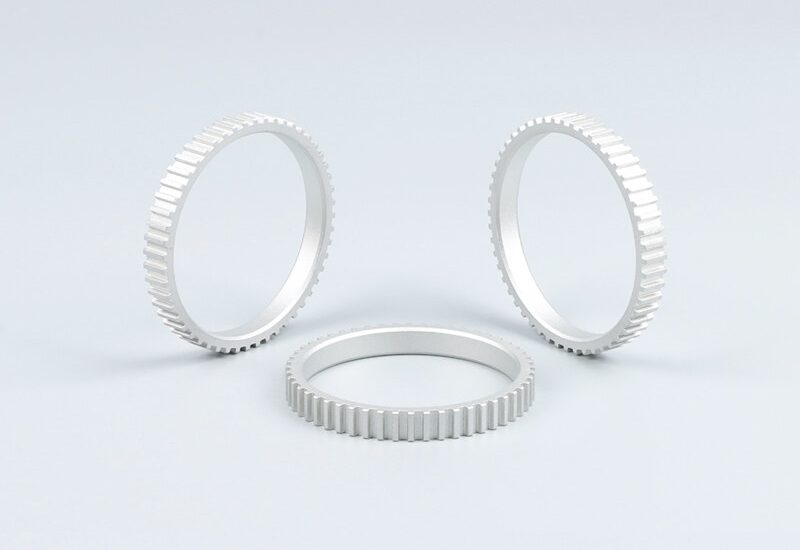

To improve the anti-corrosion performance of ABS sensor rings, we provide Dacromet technology, the coating is environmentally friendly, uniform, and silvery white in color.
Standard ABS Sensor Ring Supplier
BLUE has over 20 years of design and manufacturing experience in powder metallurgy, providing a wide range of standard parts without tooling fees.
We have over 200 ABS sensor rings to fit a wide variety of vehicle wheels.
Our standard ABS wheel speed sensor rings are available in OD 30-220mm.
Download our ABS ring product list for free clicking the link below to register.
Sintered ABS Tone Rings Benefits
Near Net Shape
Sintered ABS ring has a material utilization rate of up to 95%, and no secondary processing of the tooth profile is required after molding.
High Quality Consistency
Powder metallurgy ABS tone rings have high quality consistency through different batches.
Cost-effective
Powder metal ABS rings have a considerable manufacturing cost because they have less material waste, fewer processing steps, and less energy consumption.

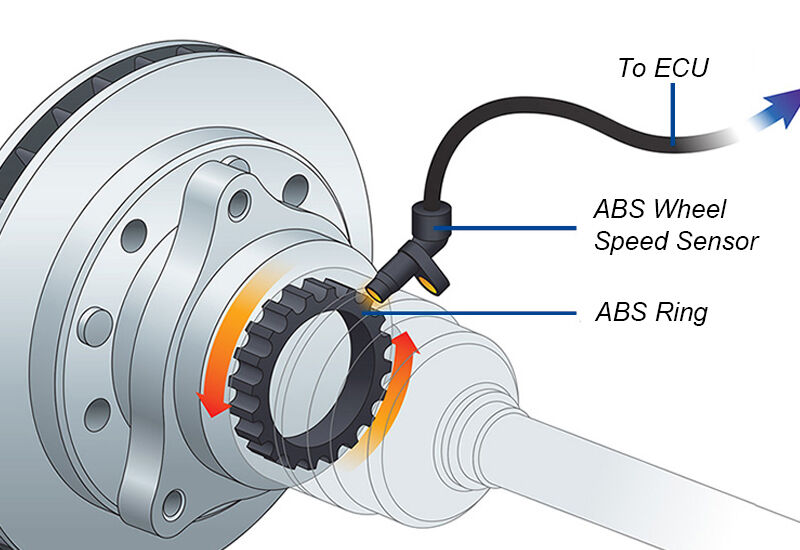

What is an ABS Tone Ring?
ABS ring, also known as ABS tone ring or reluctance ring, is a basic part in the vehicle’s anti-lock braking system (ABS).
The ABS sensor ring is mounted on the wheel hub or axle and works with a sensor to measure the rotational speed of the wheel.
As the wheel rotates, the teeth of the tone ring pass by the sensor, generating a signal that is sent to the ABS system.
These signals help the ABS system detect wheel speed and prevent the wheel from locking, guranteeing safe driving.
Custom ABS Ring Specifications
The following table shows BLUE’s manufacturing capabilities for ABS rings, including material, density, hardness, tolerance and outer diameter range, etc.
| Attribute | Value |
|---|---|
| Material | MPIF 35 F-0000 |
| Density | 6.6-7.0g/cm3 |
| Hardness | 65-90 HRB |
| Surface Treatment | Steam Treatment, Dacromet |
| Outer Diameter | 35 to 220mm |
| Length | Max. 200mm |
| Tolerance | ±0.01 mm |
| Number of Teeth | 30 to 100 |

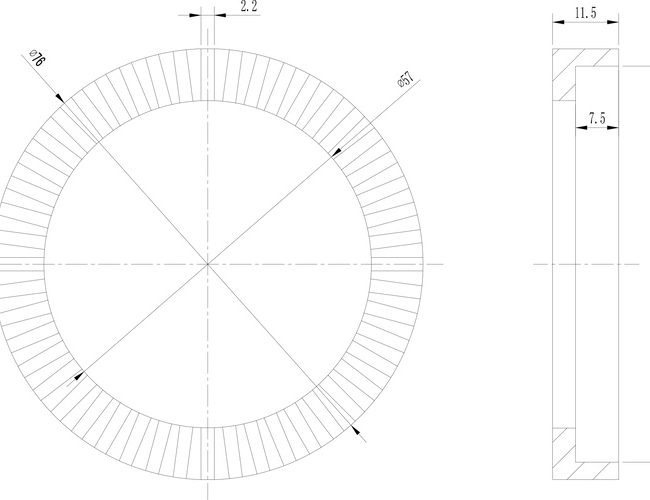

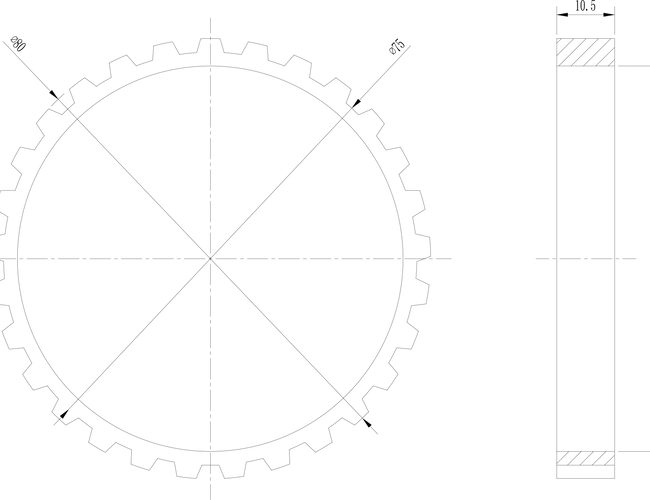

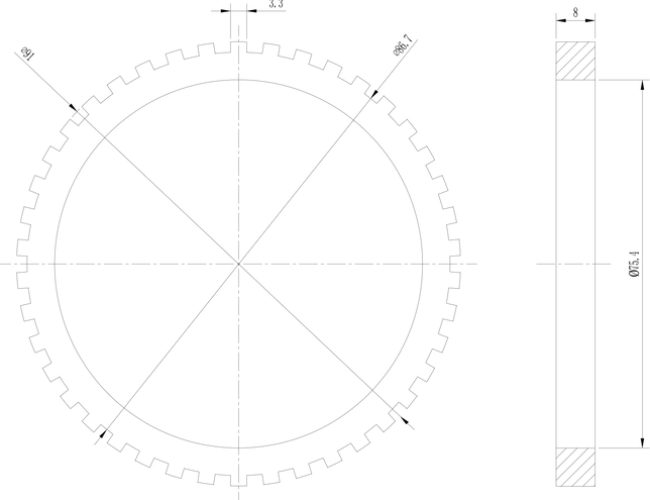

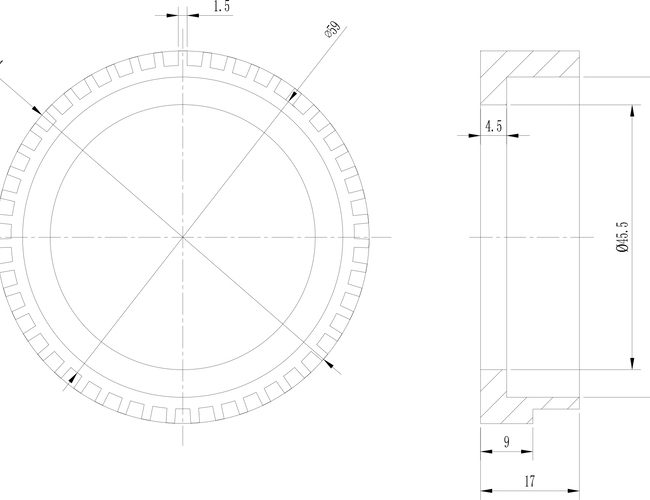

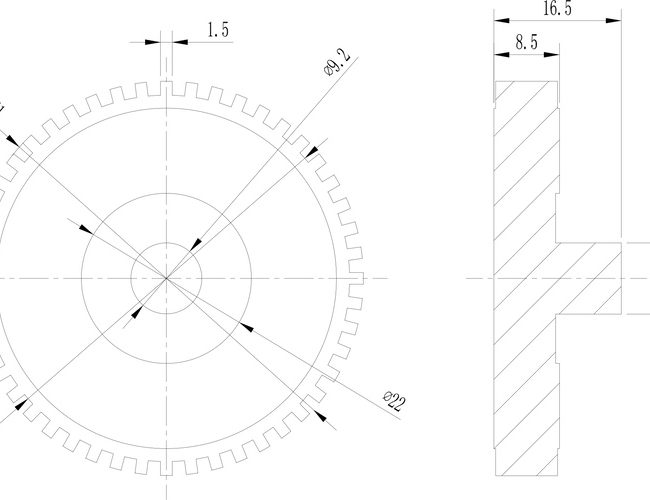

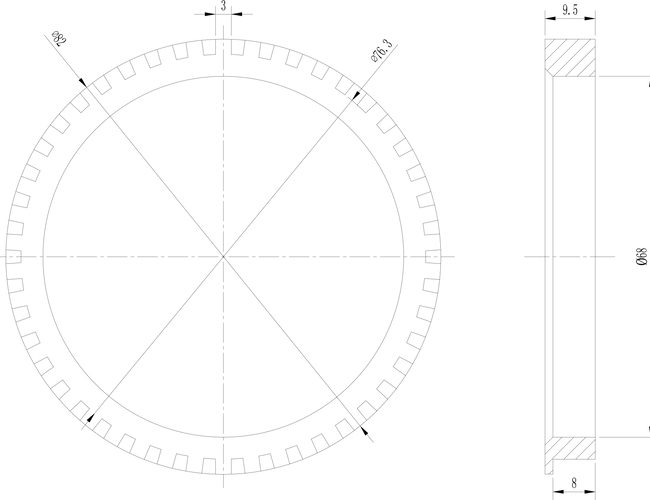

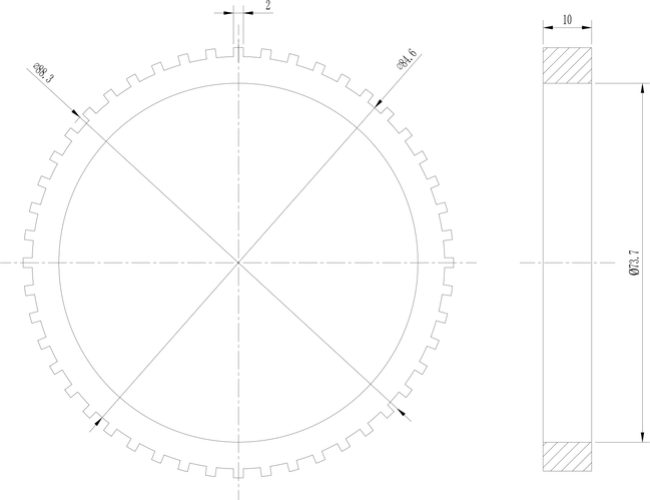

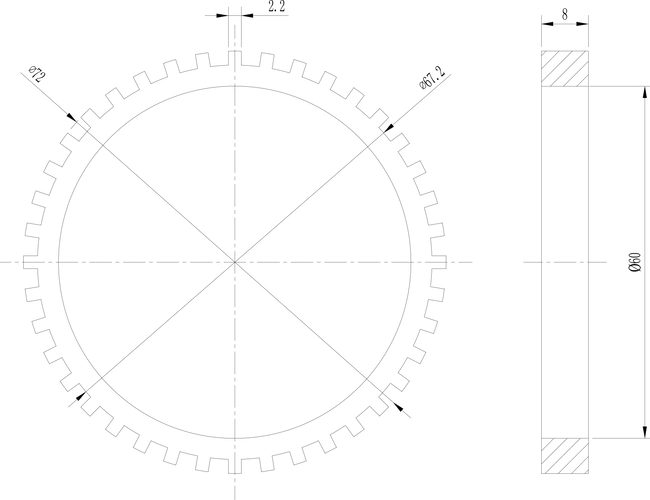

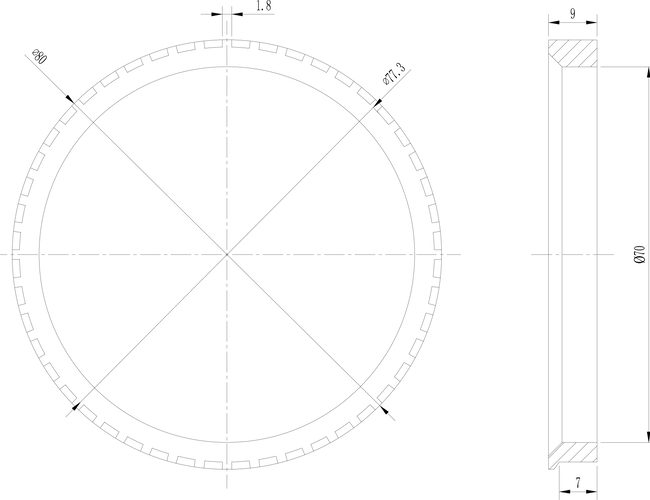

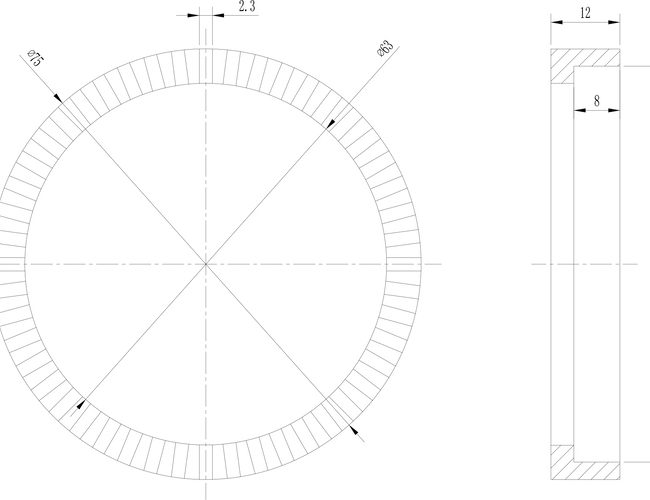

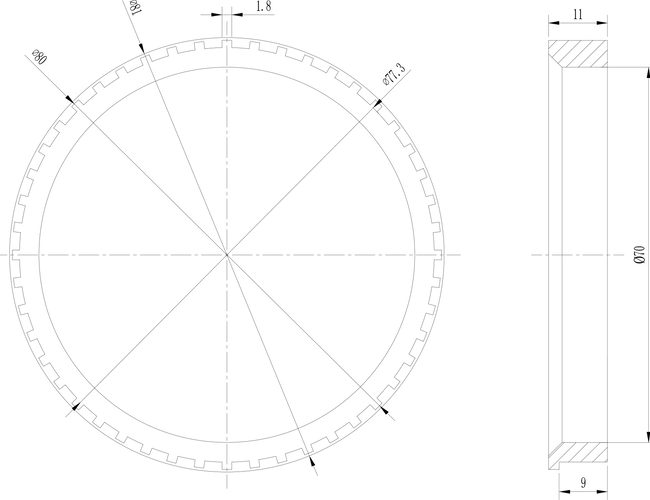

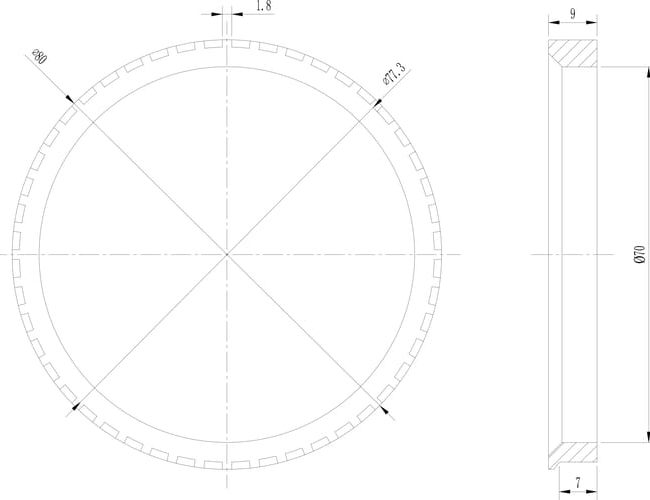

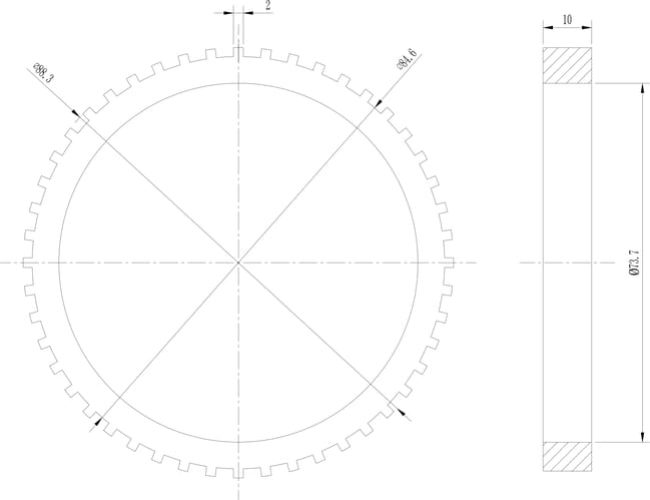

Standard ABS Rings Drawing
Below are some of our common standard ABS sensor ring drawings, if you find an exact match contact us for more.
Powder Metallurgy Manufacturing Process
Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.
Designing
Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.
Tooling
Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.
Mixing
Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.
Compacting
Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.
Sintering
Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.
Sizing
Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.
Tumbling
Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.
Machining
Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.
Blackening
Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.
Hardening
Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.
Inspecting
The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.
Packaging
BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.
BLUE's Powder Metallurgy Manufacturing Equipment
BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace, sizing press, CNC machining equipment, hardening furnace, etc.
- Compacting
- Sintering
- Inspecting
- Machining
- Packaging
Related Sintered Auto Parts
As the largest supplier of powder metallurgy standard parts in China, BLUE offers a wide range of standard auto parts with no mold fee required.
Water Pump Pulley
Our water pump pulleys feature tight tolerances, high apparent density, and superior mechanical strength.
Timing Belt Pulley
Our timing pulleys are dimensionalally accurate and pair well with timing belts to smoothly transmit synchronous rotational motion.
Water Pump Flange
Our pump flanges have the advantages of multiple models, tight tolerances and high mechanical strength.
Oil Pump Gear
Our oil pump gears offer good surface finish, tight dimensional accuracy and excellent position tolerances to deliver optimal engine performance.
Get Your ABS Ring Now!
