The global metal powder market is estimated to be worth $6 billion in 2024 and is expected to exceed $10 billion by 2034. Before you enter the powder metal parts market, it is better to learn sintered metals, which can help your projects realize the desired results.
What is sintered metal?
I will introduce the materials, process, benefits, and applications of sintered metal. You might be surprised by the wide range of applications for powdered metallurgy (PM).
Your manufacturers make powder metallurgy parts by compacting metal powders and then sintering (heating) them to bind the particles together without melting them. Sintered metal products include sintered structural parts, sintered metal bushings, sintered metal filters, sintered ceramics, and MIM parts.

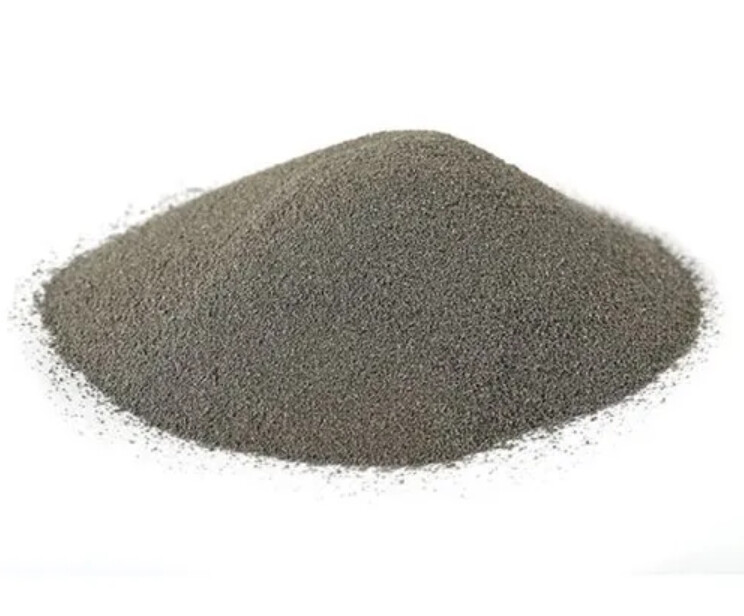

Iron is cost-effective, offers strong mechanical and magnetic properties, and is commonly used in your structural components.
Stainless steel provides excellent corrosion resistance due to its high chromium content. Common types are 300 and 400 series.
Sintered Copper and its alloys have good corrosion resistance, along with excellent electrical and thermal conductivity. Sintered copper is often employed to make self-lubricating sintered bearings.
You may see nickel elements in aerospace engine parts because of its strong resistance to high temperatures and corrosion.

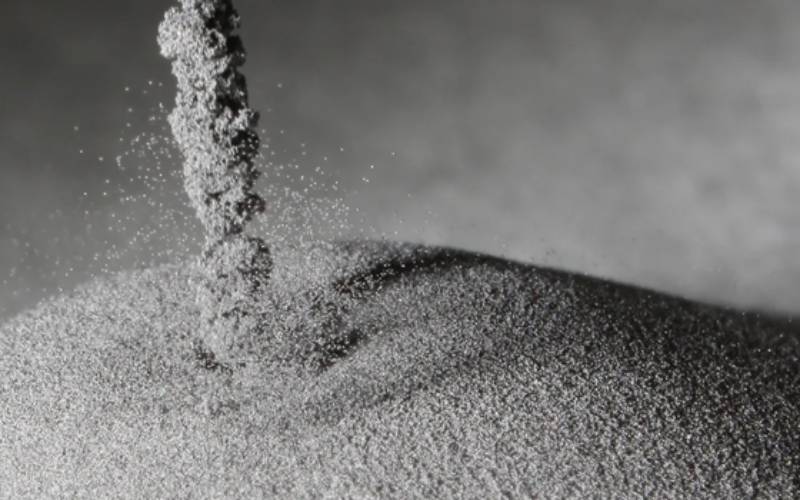

Sintered Titanium
Titanium and titanium alloy is lightweight, biocompatible, and supplies exceptional strength and corrosion resistance.
Understanding the powder metallurgy process offers you insight into the sintering process.
In order to increase the bonding strength between the powders, we evenly mix the metal powder with binders.
The loose metal powders are pressed under high pressure (common 400-800MPa) to form the shape of final products. However, at this stage, the bonding between the powder particles is weak, with a bending strength of only about 15 MPa, which is only as strong as chalk. The pressed powdered metal, called the “green compact”, must be sintered to achieve the mechanical and physical properties you want.
Sintering is divided into three main stages:
The main purpose of this process is to remove binders from the green compact to prevent it from hindering the bonding and densification of powders.
Another is to reduce the oxides on the surface of the metal powder.
Pre-sintering is usually carried out in the front row of the continuous sintering furnace. Besides, at this stage, the pre-sintering temperature is frequently between 500 and 900°C.
Simply put, sintering is the atomic movement of powder particles at high temperatures, which shortens the distance between powders and reduces the surface area.
During high-temperature sintering, the powder particles draw closer, the part density increases, and the mechanical properties improve.
Sintered PM parts must be cooled slowly from sintering temperatures to below 100°C to relieve thermal stress and prevent defects from rapid cooling.
Powder metal products can attain complex shapes, such as teeth and splines, directly through die compaction without secondary CNC machining.
The dimensional tolerance of sintered metal parts typically ranges from IT8 to IT9, and can improve to IT5 or IT7 after sizing process.
After sintering, your powder metal parts have interconnected pores that can be oil impregnated, giving self-lubricating properties. Self-lubricating sintered bushings and bearings are typical examples.
The powder metallurgy process is recognized as a green and sustainable manufacturing process, with a material utilization rate exceeding 95% and low energy consumption.
PM parts are widely used in various industries such as automobiles, motorcycles, home appliances, power tools, etc.
You might also find some shock absorber parts, such as valves, pistons, and guides in motorcycles, made by sintering.
Valve guides maintain proper alignment of the valves within the combustion chamber, allowing smooth vertical movement. In addition, they transfer heat from the valve stems to the cylinder head to dissipate heat.
Main bearing cap, also known as the crankshaft cap, supports the crankshaft, facilitating smooth rotation and distributing the loads generated by engine combustion throughout the engine block.
Crankshaft sprocket is a gear that connects the crankshaft to the timing chain or belt, keeping the camshaft and crankshaft synchronized. This is very important for the intake and exhaust valves to open and close at the correct intervals.
Powder metal gears in transmissions have high tooth accuracy and wear resistance, delivering smooth and reliable torque transmission.
We manufactures sintered parts for synchronizers, including:
The ABS ring is a metal gear component in the Anti-lock Braking System (ABS) that works with the wheel speed sensors to monitor wheel rotation and prevent the wheels from locking during braking.
PM is cost-effective and suitable for mass production of valve plates, pistons, and connecting rods in household appliances.
Powder metallurgy process accomplish strict tolerances and high tooth accuracy, suitable for manufacturing components in power tools such as angle grinders, chainsaws, and nail guns.
Bevel gears, helical gears, and planetary gears in power tools are mostly manufactured by PM.
Another application of sintered metal is filtration system. After sintering, it forms interconnected pore structures, giving the filter uniform porosity, micron-level filtration accuracy, and high efficiency.
While they may seem similar due to the application of heat, sintering and melting fundamentally differ in their mechanisms, temperature requirements, applications, and outcomes.
Sintering: Conducted at temperatures below the metal’s melting point, generally 60%-90% of the melting point.
Melting: Conducted at temperatures above the melting point, transitioning the metal from a solid to a liquid state.
Sintering: Bonds form through diffusion, neck formation between particles, and sometimes the presence of a liquid phase (liquid-phase sintering).
Melting: Bonds are created upon solidification after cooling from the liquid state.
Sintering can achieve the desired mechanical properties without completely melting the metal, which makes it easy to process metals with high melting points.
BLUE is a top powder metallurgy company in China with more than 20 years of manufacturing experience.
We offer a wide range of standard sintered powder metal parts such as oil pump rotors & gears, shock absorber components, gears, timing sprockets, water pump pulleys, etc. without tooling fees!
Visit our standard parts shop to find the exact match for your projects!
Sintered Iron-Based Parts:
Pre-sintering: 600°C → 720°C → 900°C (45 minutes)
High-temperature sintering: 1120°C (45 minutes)
Cooling: 120 minutes
Sintered Copper-Based Parts:
Pre-sintering: 500°C → 600°C → 700°C (60 minutes)
High-temperature sintering: 800°C (60 minutes)
Cooling: 120 minutes
Sintered Stainless Steel Parts:
Pre-sintering: 600°C → 720°C → 900°C (60 minutes)
High-temperature sintering: 1250°C (60 minutes)
Cooling: 120 minutes
Sintered Copper-Iron Alloy Parts:
Pre-sintering: 500°C → 600°C → 700°C (60 minutes)
High-temperature sintering: 900°C (60 minutes)
Cooling: 120 minutes
Atmosphere is a key factor in the sintering process, affecting the mechanical properties, appearance and corrosion resistance of your product. Its main functions include:
