VVT Sprocket Supplier - BLUE
BLUE offers 500+ standard VVT sprockets without tooling fees. Our variable valve timing sprockets work perfectly with the camshaft and are compatible with many cars including Land Rover, Chevrolet, Volkswagen, BMW, Audi, Peugeot, Toyota, Honda, etc.
Why Choose BLUE?
BLUE provides precision variable valve timing sprockets, OEM and ODM services, and fast delivery – your trusted supplier.
BLUE High Quality Standards
BLUE assurethe quality of your timing VVT sprockets with IATF 16949: 2016 certified quality management system. Free samples are available for testing.
Standard VVT Sprocket Shop
BLUE has a full range of standard variable valve timing sprockets in stock for fast delivery. Visit our standard parts shop to find the exact match for your applications.
OEM & ODM Services
With over 20 years of expertise in designing and manufacturing powder metallurgy parts, BLUE provides OEM and ODM services for you.
BLUE Variable Valve Timing Sprocket in China

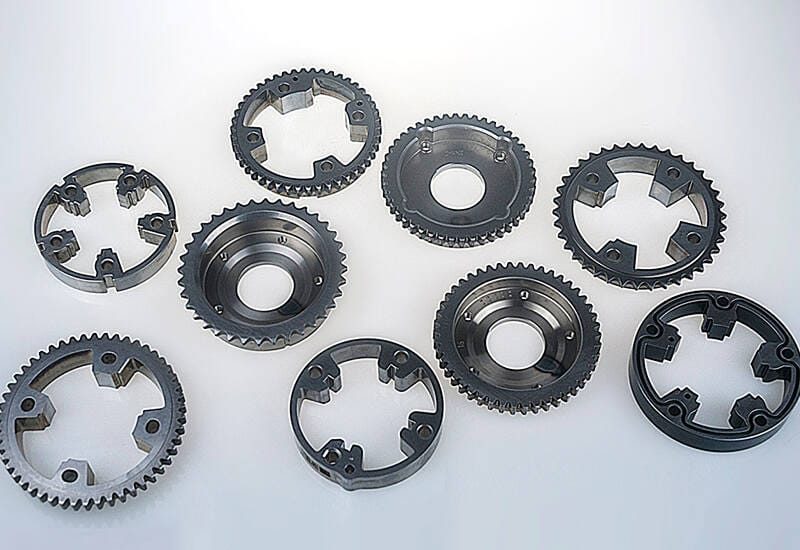

BLUE offers a wide range of standard sintered VVT sprockets with high precision, good mechanical strength and long service life.
Variable Timing Sprocket
Our engine variable timing sprocket has tight tolerances and is precisely matched to the camshaft.
Engine Variable Valve Timing Sprocket
BLUE's engine variable valve timing sprockets are made from pre-alloyed steel powder and produced through high-temperature sintering.

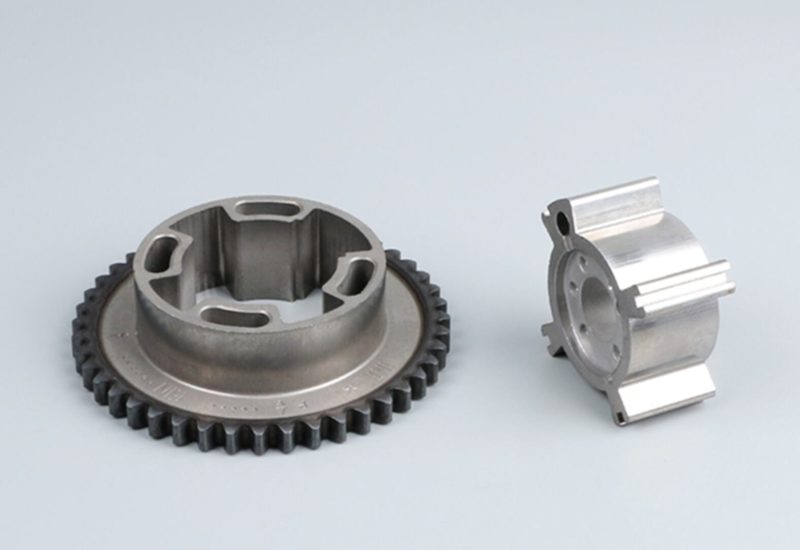

VVT Cam Sprocket
Our VVT cam sprockets feature precise tooth profiles and excellent wear resistance to help control intake and exhaust valve timing.
BLUE VVT Sprocket Advantages
BLUE is IATF 16949:2016 certified and offers a range of high quality OEM variable valve timing sprockets.
Our VVT sprockets are made of powder metallurgy pre-alloyed steel and can reach a density of 7.0 g/cm3 after sintering.
The BLUE variable valve timing sprocket has a precision-made hole and tooth shape to help achieve the best fuel efficiency for the engine.
We offer a wide range of VVT sprockets for the aftermarket, covering Toyota, Honda, Mazda, Volkswagen, BMW, Audi, Land Rover, etc.
Standard VVT Sprocket Supplier
BLUE is a leading supplier of powder metallurgy standard parts in China, offering a wide range of standard VVT sprockets.
Compared to machined VVT sprockets, our sintered VVT sprockets can save you 20% – 30% in costs.
In addition to precision VVT sprockets, BLUE also provides timing crankshaft sprockets and camshaft sprockets.
Contact us for free standard VVT sprockets products list or to send your customized requirements.
BLUE Surface Treatment
To enhance rust resistance and extend the service life of powder metallurgy products, BLUE offers the following surface treatment processes.
- Dacromet
Dacromet is a green and environmentally friendly surface treatment process that does not produce wastewater and exhaust gas and has high heat resistance and corrosion resistance. - Steam Treatment
Steam treatment can significantly improve the hardness, corrosion resistance and wear resistance of powder metallurgy products - Electroplating
There are gaps inside powder metallurgy products, so before electroplating, resin impregnation or copper infiltration is required to fill the pores. Common electroplating includes zinc plating, nickel plating.
What is a VVT Sprocket?
A variable valve timing (VVT) sprocket is a gear component mounted on the engine camshaft.
The working principle of the VVT sprocket is to adjust the amount of intake (exhaust) and the valve opening and closing time and angle by adjusting the camshaft rotation angle.
At low engine speeds (RPM), the VVT sprocket advances the timing to improve engine response and reduce fuel consumption.
At high engine speeds, it retards the timing to provide better power and prevent engine knock.
Custom VVT Sprocket Specifications
The following table shows BLUE’s manufacturing capabilities for variable valve timing sprockets, including material, density, hardness, tolerance, and surface treatment.
| Attribute | Value |
|---|---|
| Material | MPIF 35 FL-4405 prealloyed steel |
| Density | 6.9-7.1g/cm3 |
| Hardness | 65-90 HRB |
| Surface Treatment | Blackening |
| Tolerance | ±0.01 mm |
Powder Metallurgy Manufacturing Process
Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.
Designing
Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.
Tooling
Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.
Mixing
Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.
Compacting
Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.
Sintering
Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.
Sizing
Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.
Tumbling
Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.
Machining
Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.
Blackening
Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.
Hardening
Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.
Inspecting
The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.
Packaging
BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.
BLUE's Powder Metallurgy Manufacturing Equipment
BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace, sizing press, CNC machining equipment, hardening furnace, etc.
- Compacting
- Sintering
- Inspecting
- Machining
- Packaging
Related Powder Metallurgy Auto Parts
As the largest supplier of powder metallurgy standard parts in China, BLUE offers a wide range of standard auto parts with no mold fee required.
Water Pump Pulley
Our water pump pulleys feature tight tolerances, high apparent density, and superior mechanical strength.
Timing Chain Sprocket
BLUE timing chain sprockets with precision teeth profile and holes, which fit perfectly with your chain and timing sprocket.
Timing Belt Pulley
Our timing pulleys are dimensionalally accurate and pair well with timing belts to smoothly transmit synchronous rotational motion.
Oil Pump Rotor
Our oil pump rotors have good surface finish, tight dimensional accuracy and excellent position tolerances to deliver optimal engine performance.
Get Your VVT Sprocket Today!
