Valve Guides OEM & ODM Company - BLUE

BLUE offers a variety of standard valve guides with no tooling required, manufactured for the aftermarket and compatible with engines from Cummins, Weichai, Ford, Toyota, Mazda, Honda, GM, Volkswagen, Mitsubishi, and more.

Why Choose BLUE?

BLUE offers top-quality valve guides with tight tolerances, excellent wear resistance, and heat resistance – your trusted OEM and ODM supplier

IATF 16949 2016 Certificate

BLUE High Quality Standards

BLUE assure the quality of your sintered guides with an IATF 16949: 2016 certified quality management system. Free samples are available for testing.

Standard Parts Shop

Standard Valve Guide Shop

BLUE has a full range of standard engine valve guide in stock for fast delivery. Visit our standard parts shop to find the exact match for your applications.

BLUE OEM and ODM Services

OEM & ODM Services

With over 20 years of expertise in designing and manufacturing powder metallurgy parts, BLUE provides OEM and ODM services for you.

BLUE Valve Guides in China

BLUE offers a variety of valve guides for both gasoline and diesel engines, available in materials such as sintered bronze and sintered iron.

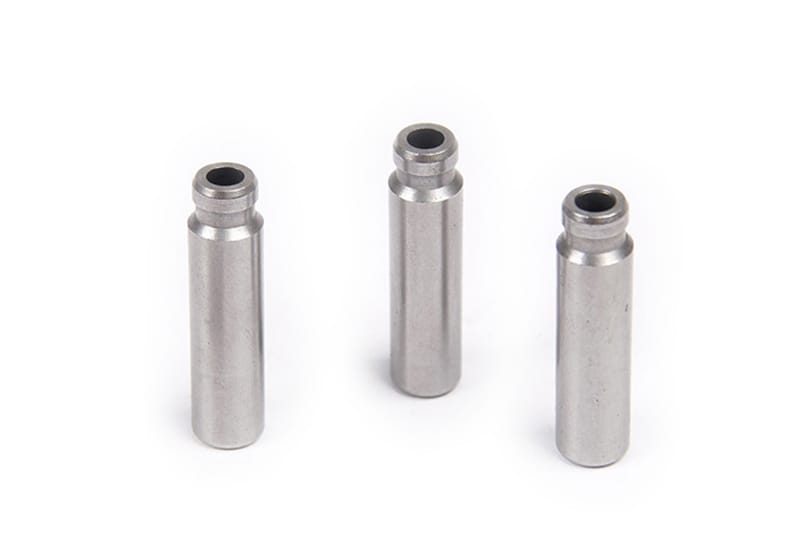

Engine Valve Guide

Engine Valve Guide

Engine valve guide has a guiding motion for the engine valve to ensure that it is not damped in reciprocating linear motion.

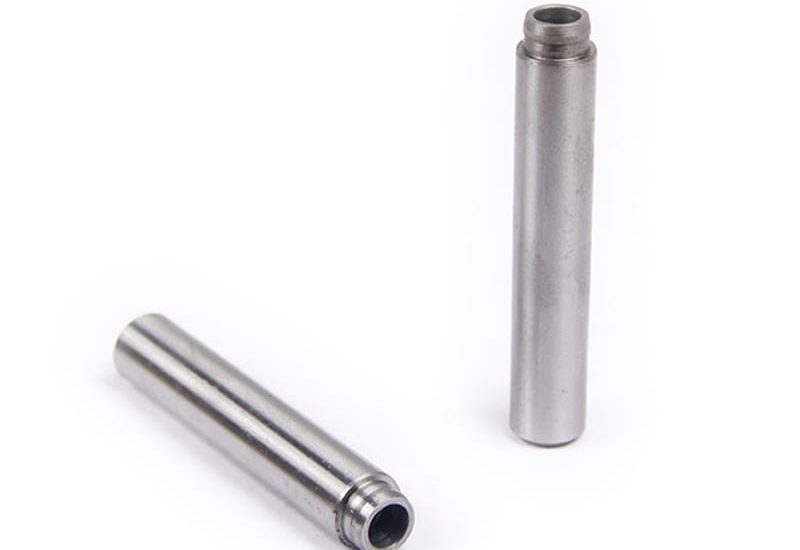

Intake Valve Guide

Intake Valve Guide

Intake valve guides help maintain valve alignment for proper sealing and conduct heat away from the valves.

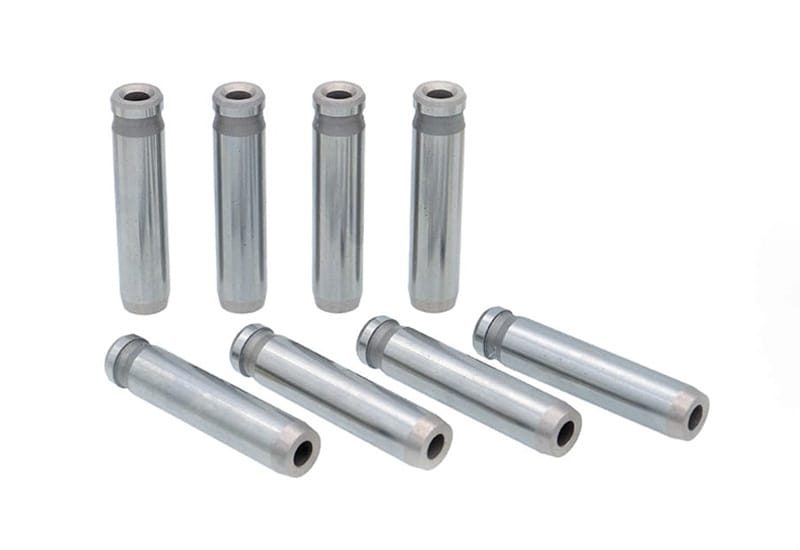

Exhaust Valve Guide

Exhaust Valve Guide

BLUE sintered exhaust valve has good wear resistance, low friction and corrosion resistance.

Motorcycle Valve Guide

1.8T Valve Guide

BLUE sintered 1.8T valve guide has the benefits of self-lubrication, tight tolerance and light weight.

Bronze Valve Guide

Bronze Valve Guide

BLUE bronze valve guide uses bronze powder as raw material, which has good corrosion resistance and low friction performance.

Motorcycle Valve Guide

Motorcycle Valve Guide

BLUE motorcycle valve guide has good heat resistance and thermal conductivity, ensuring the best performance of the engine.

BLUE Valve Guide Advantages

BLUE’s valve guides are manufactured under the supervision of IATF 16949:2016, ensuring reliable quality.

Our valve guides have tight dimensional tolerances, excellent wear resistance and heat resistance, ensuring the precise operation of the valve system.

BLUE valve guides feature a compression strength exceeding 800 MPa and a hardness of over 40 HRC after heat treatment.

Our valve guides are of various types and are suitable for various gasoline and diesel engines, such as Weichai engines, Hino diesel engines, Nissan engines, Mercedes-Benz engines, etc.

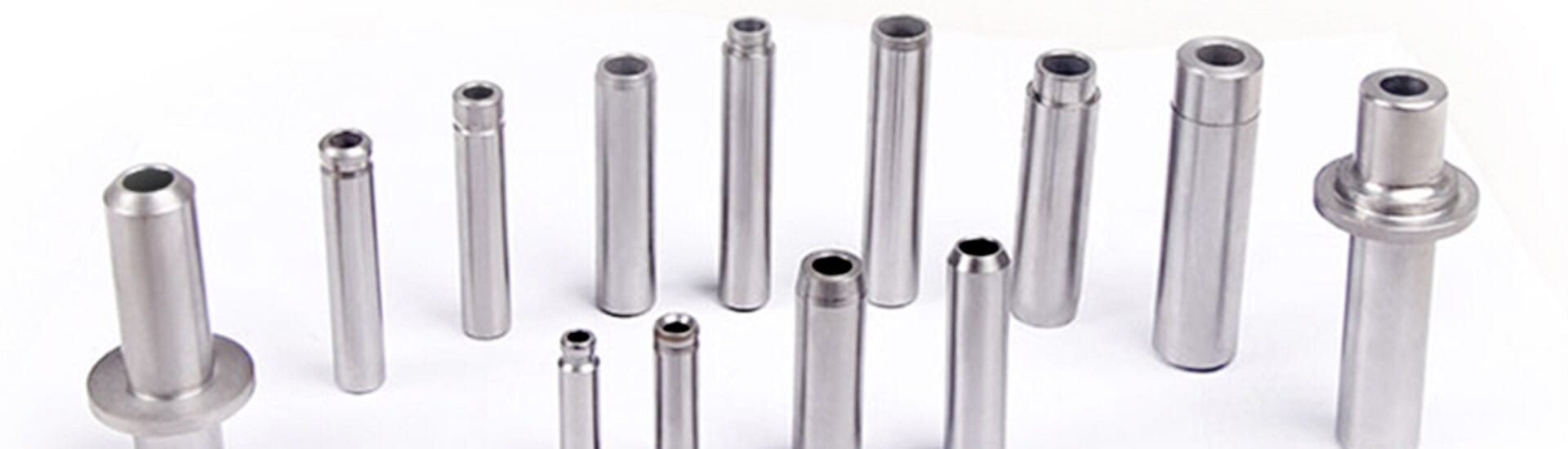

Powder Metallurgy Valve Guides
A Wide Range of Valve Guides

Standard Valve Guide Supplier

BLUE is a professional powder metallurgy standard parts supplier in China with rich manufacturing and design experience.

Our standard sintered valve guides cover a variety of gasoline and diesel engines, including intake and exhaust valve guides.

BLUE not only provides standard powder metal valve guides, but also sintered valve seats.

Contact us to get our standard valve guide models or tell us your needs.

Benefits of Sintered Valve Guide

Precision and Consistency
The PM process provides high dimensional accuracy and repeatability, resulting in consistent quality valve guides with tight tolerances.

Enhanced Material Properties
Sintered valve guide has pores inside, and has the characteristics of self-lubrication after oil impregnation, which can reduce friction.

Cost Effectiveness
Sintered valve guides are cost-effective to manufacture in large quantities due to reduced material waste and fewer process steps.

Sintered Valve Guide
Intake Valve Guide

What is a Valve Guide?

Valve guides are cylindrical parts inside the engine cylinder head that guide the movement of the valve stem as it opens and closes. Their main functions include:

Guide the valve to the cylinder, ensuring smooth, precise vertical movement.

Keep the valve properly aligned in the combustion chamber for effective sealing and optimal engine performance.

The valve guide can also transfer the heat of the valve stem to the cylinder head, thereby achieving the purpose of heat dissipation.

Custom Valve Guide Specifications

The table shows our manufacturing capabilities for customized valve guides, including material, density, hardness, tolerance, and surface treatment.

AttributeValue
MaterialSintered Iron, Sintered Bronze
Density6.6-7.0g/cm3
 Hardened HardnessOver 40 HRC
Surface TreatmentHeat Treatment
Tolerance±0.01 mm
Diameter5-40mm
Length20-100mm

Powder Metallurgy Manufacturing Process

Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.

14-Powder Metallurgy-Designing

Designing

Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.

Powder Metallurgy Compacting Mold

Tooling

Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.

13-Powder Metallurgy-Mixing

Mixing

Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.

16-Powder Metallurgy-Compacting

Compacting

Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.

17-Powder Metallurgy-Sintering

Sintering

Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.

18-Powder Metallurgy-Sizing

Sizing

Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.

20-Powder Metallurgy-Machining

Machining

Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.

19-Powder Metallurgy-Vibrating

Tumbling

Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.

21-Powder Metallurgy-Blacking

Blackening

Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.

22-Powder Metallurgy-Hardening

Hardening

Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.

22-Powder Metallurgy-Inspecting

Inspecting

The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.

23-Powder Metallurgy-Packaging

Packaging

BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.

BLUE's Powder Metallurgy Manufacturing Equipment

BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace,  sizing press, CNC machining equipment, hardening furnace, etc.

Related Powder Metallurgy Auto Parts

As a leading powder metallurgy supplier in China, BLUE provides a variety of standard PM parts, including valve seats, oil pump rotors and gears, timing belt pulleys, and timing sprockets, all without tooling fees.

Engine Valve Seat

Valve Seat

Valve seat absorbs high speedimpact of the valve while providing a durable, heat-resistant surface that ensures proper sealing for valves.

oil-pump-inner-rotor 1

Oil Pump Rotor

Our oil pump rotors have good surface finish, tight dimensional accuracy and excellent position tolerances to deliver optimal engine performance.

Powder-Metallurgy-Timing-Pulley 3

Timing Belt Pulley

Our timing pulleys are dimensionalally accurate and pair well with timing belts to smoothly transmit synchronous rotational motion.

Powder-Metal-Sprocket 3

Timing Chain Sprocket

BLUE timing chain sprockets with precision teeth profile and holes, which fit perfectly with your chain and timing sprocket.

FAQ's

Here are some of the questions we get asked often.  If yours isn’t answered, don’t hesitate to contact us, we’re happy to help!

The main reasons for valve guide failure are as follows:

  • Valve guides operate at extremely high temperatures, which can reduce their hardness, cause deformation, and accelerate surface corrosion and oxidation.
  • Over time, high-frequency reciprocating friction between the valve and the valve guide increases clearance and wear, potentially leading to guide fracture.
  • Additionally, horizontal forces caused by machining or assembly errors between the valve guide, valve, and valve seat insert can also result in failure.
