China Sintered Titanium Filter
BLUE offers a wide range of high-quality sintered titanium with filtration accuracy from 0.5 to 100 μm, including sintered titanium discs, porous titanium sheets, and titanium cartridges.
BLUE Sintered Titanium
We offer a wide range of sintered powder metal titanium filters in multiple shapes, including discs, sheets, and cylinders, with varied filtration accuracies.
Sintered Titanium Filter
Sintered titanium filter has good biocompatibility, excellent corrosion resistance and high temperature resistance.

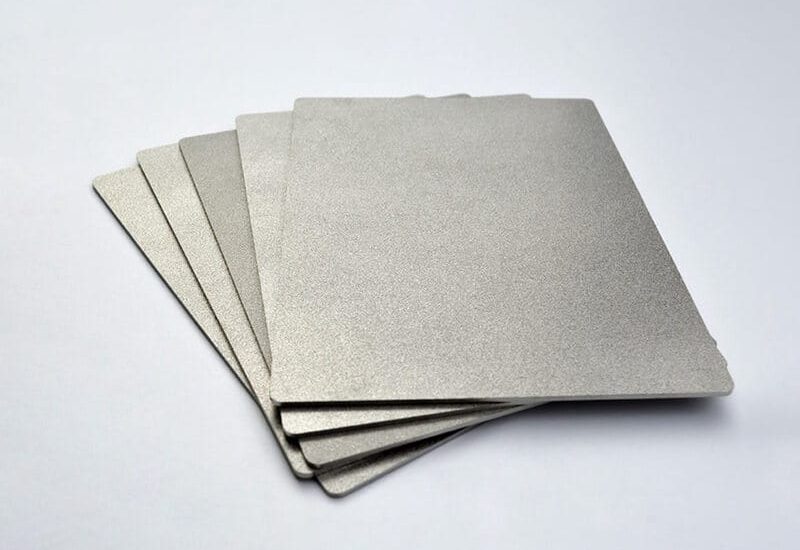

Porous Titanium Sheet
A porous titanium sheet is made from titanium powder, is easy to shape, and reaches a maximum size of 1000 × 300 mm without welding.
Sintered Titanium Disc
BLUE porous titanium disc filter has good chemical stability, acid and alkali solution resistance, and anti-oxidation.
Titanium Sintered Filter Sheet
BLUE titanium sintered filter sheet feature a porous structure, ideal for solid-liquid separation, and fine filtration of liquid or gas.
Titanium Filter Cartridge
Our titanium filter cartridges can be customized in filtration accuracy, diameter, and length, with fittings available in either imperial or metric threads.
Sintered Titanium Cylinder Filters
BLUE titanium cylinder filters feature good heat and pressure resistance, as well as excellent corrosion resistance.
BLUE's Custom Sintered Titanium Capabilities
The following table is about the size, filtration accuracy, thickness, porosity, and maximum operating temperature of BLUE customized sintered titanium.
| Types | Disc | Sheet | Cartridge |
|---|---|---|---|
| Maximum Size | Diameter 500 | 1,000 × 330mm | Diameter 10-400mm Length 100-3000mm |
| Filter Accuracy | 0.5 – 100 μm | 0.5 – 80 μm | 0.5 – 100 μm |
| Thickness | 1 – 30 mm | 0.5 – 10 mm | 0.5 – 5 mm |
| Porosity | 25% – 50% | 25% – 45% | 25% – 50% |
| Maximum Operating Temperature | 300°C | 300°C | 300°C |
| Maximum Operating Pressure | 2.5MPa | 2.5MPa | 2.5MPa |
BLUE's Sintered Titanium Benefits
BLUE has specialized in the sintered filter industry for over a decade and can manufacture a wide range of porous titanium filters to fulfill your requirements.
We supply porous titanium sheets with a maximum size of 1,000 × 300 mm and thicknesses ranging from 0.5 to 10 mm.
The porosity of BLUE sintered titanium filters can be customized between 25% and 50%.
We also offer fittings such as threads, snaps, and flanges for your titanium filter cartridges, for your convenience.
Standard Sintered Titanium
BLUE offers a wide selection of standard sintered titanium products, including porous titanium filter discs, porous titanium sheets, and titanium filter cartridges.
Standard Titanium Filter Cartridge: Outer diameter (OD) from 6 to 12 mm, length from 100 to 3,000 mm.
Standard Porous Titanium Sheet: Sizes of 100 × 100 mm and 200 × 200 mm, with thicknesses available from 0.5 to 10 mm.
Standard Sintered Titanium Disc: Diameter from 6 to 100 mm, thickness from 1 to 50 mm.
Advantages of Porous Titanium
Sintered titanium disc has uniform density, narrow pore size distribution and high filtration efficiency.
Sintered titanium disc have high air permeability and low filtration resistance, which is conducive to filtering and separating impurities.
Sintered titanium filter cartridge has excellent corrosion resistance and good mechanical strength, and can still work in harsh environments.
Porous titanium sheets are easy to form, require no welding, and can be manufactured up to 1,000 mm in length.
Applications of Porous Titanium
Medical field
Porous titanium filters have good biocompatibility and are used for decarbonization and filtration of liquid medicine.
Water treatment
Sintered titanium has a porous structure with fine filtration accuracy, which can effectively remove bacteria, suspended matter, etc. in water.
Mechanical industry
Porous titanium has good corrosion resistance and can filter lubricating oil or exhaust gas in mechanical equipment.
Get Your Porous Sheet Today!
