BLUE High Quality Porous Sheet
BLUE offers porous sheets made from plastic, stainless steel, bronze, titanium, and nickel. Porous plastic sheets are available up to 1,500 × 1,500 mm in size, with thicknesses from 1 to 25 mm. Porous metal sheets are available up to 1,000 × 330 mm, with thicknesses from 0.5 to 20 mm.
Why Choose BLUE?
With narrow pore size distribution, up to 99% filtration efficiency, and long-lasting durability, BLUE porous sheets are your trusted choice for high filtration performance.
BLUE High Quality Standards
BLUE is an ISO 9001:2015 certified manufacturer. We have a strict quality management system to ensure the quality of your porous sheet.
Standard Porous Sheet Shop
We have a wide range of standard sintered sheets in stock for quick delivery. Go to our standaed part shop and pick out what you need.
Download Porous Sheet List
Discover BLUE’s full range of standard sintered porous sheets. Download our free product list to find the exact match for your requirements.
Various Sintered Porous Sheets in BLUE
BLUE consistently delivers high-quality porous sheets, such as low-density sterile sintered plastic sheets, and sintered nickel sheets that are extremely resistant to high temperatures and thermal shocks.
Sintered Plastic Sheet
BLUE sintered plastic sheets are highly customizable, with options for size, filtration grade, thickness, and porosity.
Sintered PTFE Sheet
Sintered PTFE sheet has good mechanical strength, natural hydrophobicity, and high temperature resistance up to 260°C.
Sintered Polyethylene Sheet
Sintered polyethylene sheet has the characteristics of low density, uniform porosity, non-toxicity and wide application range.
Sintered Stainless Steel Sheet
BLUE sintered stainless steel sheet has good toughness, strong acid and alkali resistance, and high temperature resistance can reach over 600°C.

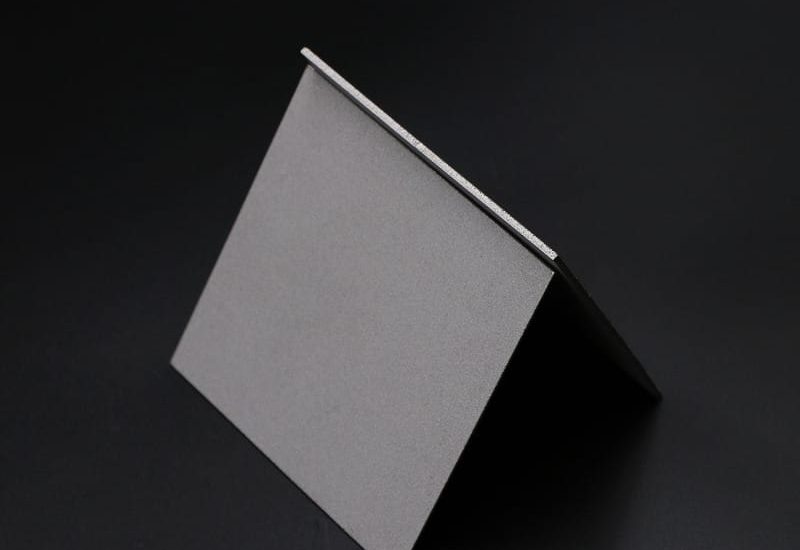

Titanium Sintered Filter Sheet
Titanium sintered filter sheet has the advantages of low density, high specific strength, good impact resistance and good corrosion resistance.
China Sintered Filter Sheet
China sintered filter sheet has accurate filtration accuracy, controllable porosity, high filtration efficiency, and high quality.
Porous Metal Sheet
BLUE porous metal sheets are made from high-quality metal powder and achieve structural integrity and excellent mechanical properties through the sintering process.

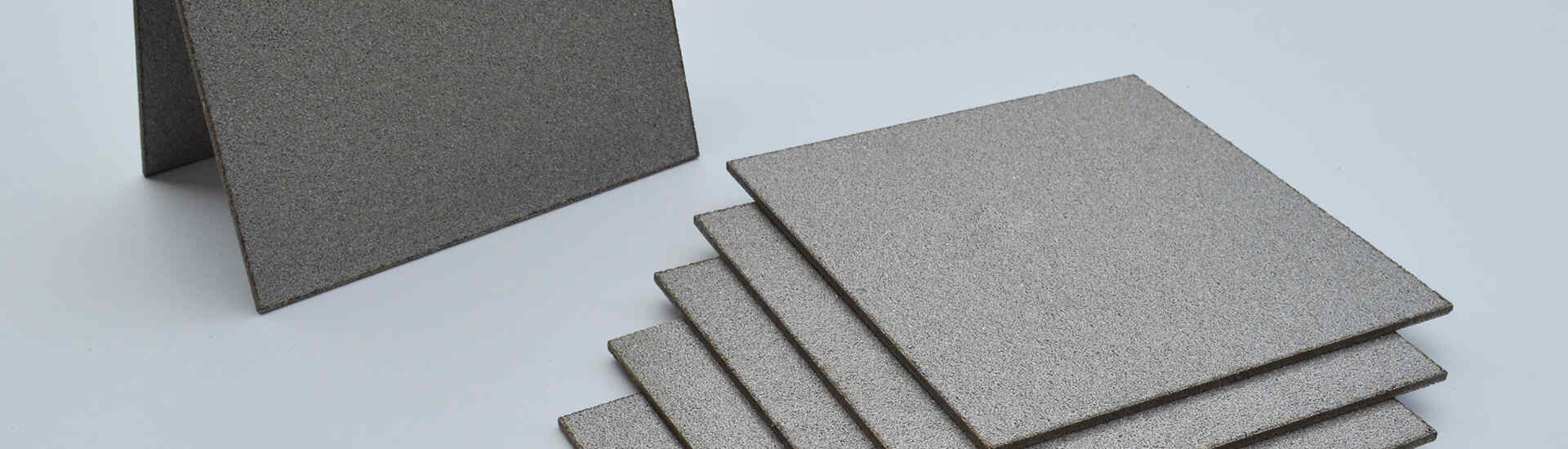

Sintered Metal Sheet
Our sintered metal plates are made from stainless steel, titanium, or nickel, featuring corrosion resistance and long service life.
Sintered Bronze Sheet
BLUE sintered bronze sheet has the advantages of high filtration efficiency, good heat resistance and corrosion resistance
Custom Porous Sheet with BLUE
The following table is about the size, filtration accuracy, thickness, porosity, and maximum operating temperature of BLUE customized porous sheets. If you have special requirements, please contact us.
| Attribute | Stainless Steel | Titanium | Plastic | Nickel |
|---|---|---|---|---|
| Maximum Size | 1,000 × 330mm | 1,000 × 330mm | 1, 500 × 1, 500mm | 1,000 × 330mm |
| Filter Accuracy | 0.5 – 100 μm | 0.5 – 80 μm | 0.2 – 100 μm | 1 – 70 μm |
| Thickness | 0.5 – 10 mm | 0.5 – 10 mm | 1 – 25 mm | 0.5 – 10 mm |
| Porosity | 25% – 50% | 25% – 45% | 30% – 70% | 25% – 45% |
| Maximum Operating Temperature | 600°C | 300°C | 260°C | 1,000°C |
| Maximum Operating Pressure | 3MPa | 2.5MPa | 0.8MPa | 3MPa |
BLUE Porous Sheet Advantages
BLUE specializes in manufacturing porous sheet for many years and has advanced production technology.
We have the ability to produce porous metal sheet as thin as 0.5mm.
Our porous metal sheet thickness tolerance is controlled within ±0.01mm and has good parallelism.
BLUE porous nickel sheet can withstand high temperatures of 1000°C and has excellent thermal conductivity and corrosion resistance.
Our porous sheet can be cleaned by backflushing or ultrasonic and reused repeatedly, reducing subsequent maintenance costs.
Standard Porous Sheet Supplier
As a professional sintered filter supplier, we have a series of standard porous sheets for fast delivery.
Standard length: 10mm, 50mm, 100mm, 200mm, 500mm
Standard width: 10mm, 50mm, 100mm, 200mm, 500mm
Standard filtration rating: 0.2 μm, 0.5 μm, 1 μm, 5 μm, 10 μm, 20 μm, 50 μm.
Standard thickness: 0.5mm, 1mm, 2mm, 3mm, 5mm, 10mm.
Free to contract our team if you have special requiement.
Advantages of Sintered Sheet
Sintered metal sheet uses metal powder as raw material and is sintered at high temperature. It has uniform porosity and controllable pore size.
Porous sheet has a tortuous porous structure inside, so it has strong dirt holding capacity and can effectively filter suspended matter, particles, etc.
Sintered PTFE sheet has low density, high strength, and good heat resistance up to 260 °C, and can be used in harsh environment.
Sintered titanium sheets offer high permeability, excellent resistance to acid and alkali corrosion (pH 2-12), and strong oxidation resistance.
Applications of Porous Sheet
- Liquid Filtration
Porous metal sheet has good corrosion resistance and is widely used to remove impurities from chemical liquids.
- Gas Filtration
The uniform pore size of sintered sheet ensures effective removal of particulate matter and is suitable for gas filtration in industries such as air purification systems.
- Hydraulic and Lubrication Systems
Applied in machinery to filter hydraulic oil and lubricants to improve the service life and performance of equipment.
- Sound Attenuation
Sintered sheet has a porous structure that can absorb sound and is used as a building sound insulation board.
Download Product List
Sintered Filter Disc
BLUE's sintered filter discs are available in bronze, stainless steel, and plastic, with filtration accuracy ranging from 0.5 to 100μm.
Sintered Muffler
BLUE's sintered silencer has uniform pores, significant noise reduction effect, long service life, and can be customized in various sizes.

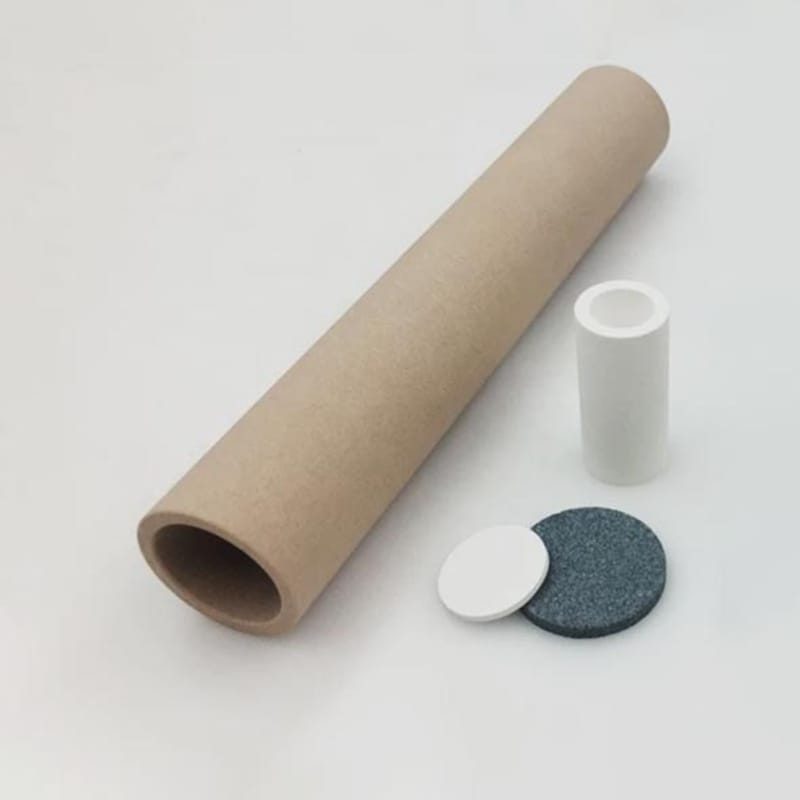

Sintered Ceramic Filter
Sintered ceramic filter is a high-performance filter with high temperature resistance, corrosion resistance, and good surface finish.
Sintered Filter Cartridge
BLUE's sintered filter cartridge has excellent filtration efficiency and can be customized in lengths up to 3000mm.
Get Your Porous Sheet Today!
