Sintered Gears

Additional information

Weight 53 g
Size

35*10mm

Process

Powder Metallurgy

Material

FC-0208

Tolerance

±0.015mm

Heat Treatment

Hardening

Hardness

HRC30~40

MOQ

3,000 pcs

Lead Time

20-30 Days

Sample

Available

Application

Power Tools

The Largest Powder Metallurgy Standard Parts Company in China

  • Free samples, no mold fees, test before placing an order.
  • 10,000+ standard parts cover all powder metallurgy processes.
  • Quality controlled under ISO 9001:2015 & IATF 16949:2016 standards.

Detailed Description of Sintered Gears

BLUE sintered gears are formed by pressing metal powder in one step, without the need for secondary machining process.

Our sintered gears are manufactured with tight tolerances in both dimension and position.

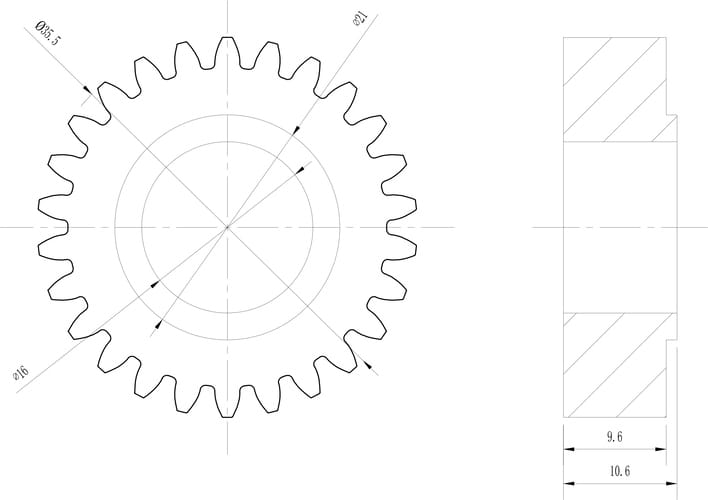

Sintered Gears Drawing
