Camshaft Sprocket Supplier - BLUE

BLUE offers a wide range of engine camshaft sprockets for various automobile engines without tooling fees. These timing sprockets feature precise tooth profiles, good core strength, and high apparent hardness.

Why Choose BLUE?

We establish ourselves by providing high-quality engine camshaft timing sprockets, excellent after-sales service, and fast delivery—your trusted supplier.

IATF 16949 2016 Certificate

BLUE High Quality Standards

BLUE guarantee the quality of your camshaft timing sprockets with an IATF 16949: 2016 certified quality management system. Free samples are available.

Standard Parts Shop

Standard Camshaft Sprocket Shop

BLUE has a variety of standard cam shaft sprockets in stock for fast delivery. Visit our standard parts shop to find the same as your projects.

BLUE Free Mold Design Services

Free Mold Design Service

With over 20 years of expertise, BLUE provides free, high-precision mold design services tailored to your needs. Trust our experience to deliver for you!

BLUE Camshaft Sprocket in China

BLUE camshaft timing sprocket has a precise profile and good strength to reliably maintain the timing between the crankshaft and the camshaft for long term.

Powder-Metallurgy-Sprocket 1

Cam Chain Sprocket

BLUE's cam shaft sprocket has tight bore tolerances, good mechanical strength and surface roughness.

Powder-Metal-Sprocket 1

Engine Timing Chain Sprocket

BLUE engine timing sprockets are steam treated to improve hardness, strength and corrosion resistance.

Automobile-Timing-Sprocket 3

Camshaft Timing Sprocket

The camshaft timing sprocket works with the timing chain to keep the camshaft and crankshaft rotating synchronously.

Sintered-Sprocket 3

Camshaft Sprocket Gear

Our camshaft sprocket tooth profile accuracy can reach ISO/DIN grade 7 or above after sizing process.

custom-chain-sprocket 3

Adjustable Camshaft Sprocket

Our sintered adjustable camshaft sprockets are compacted by high quality metal powders, with high green strength, and sintered for reliable performance

Timing-Sprocket 1

Timing Crankshaft Sprocket

BLUE timing crankshaft sprocket has high apparent hardness, good tensile strength and fatigue resistance, and has a long service life.

BLUE Camshaft Sprockets Feature

BLUE sintered camshaft sprockets are manufactured under strict compliance with IATF 16949:2016 standards.

Our engine camshaft timing sprockets feature precise tooth profiles, high core strength and good wear resistance.

With a sintering density exceeding 6.7 g/cm³ and tooth profile accuracy better than ISO grade 8, our sprockets deliver superior performance.

After heat treatment, the tooth surface hardness of BLUE camshaft timing sprockets reaches up to 45 HRC.

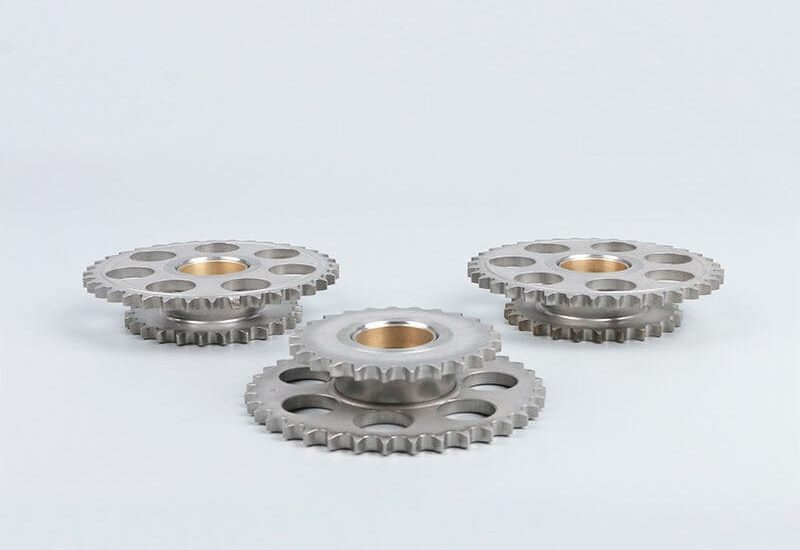

Powder-Metallurgy-Sprocket 4

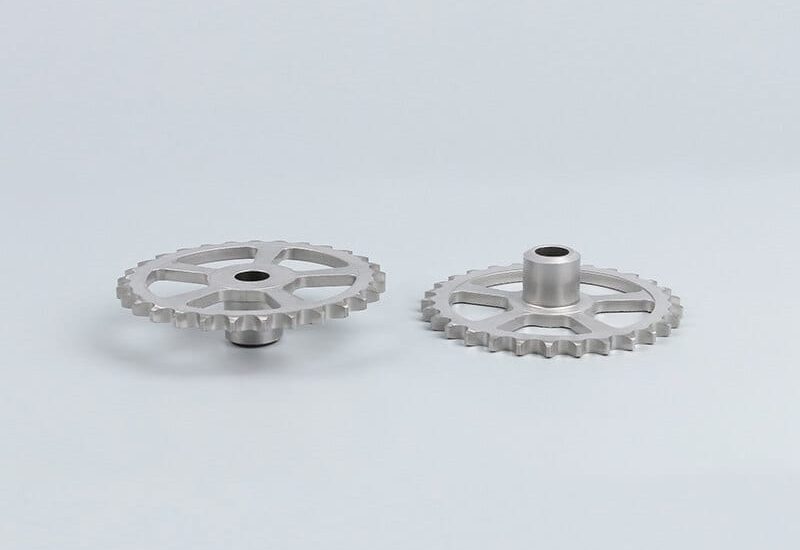

Timing-Sprocket 3

Standard Camshaft Sprocket Supplier

BLUE is a top powder metallurgy company in China, specializing in a wide range of camshaft sprockets.

Our standard camshaft sprockets come in various models, compatible with Volkswagen, BMW, Audi, Mercedes-Benz, Chevrolet, Toyota, Honda, and Peugeot.

We offer both engine camshaft chain sprockets and crankshaft timing sprockets.

Download our sintered timing sprocket product list for free to find the perfect match for your needs.

Surface Treatment

BLUE has a professional team of engineers and advanced production equipment of powder metallurgy.

We provide copper infiltration, heat treatment and steam treatment to enhance the mechanical and physical properties of your PM parts.

The copper infiltration process can improve the overall density, hardness and strength of the sintered parts.

Steam treatment can improve the corrosion resistance, hardness and wear resistance of your products.

Heat treatment can improve the apparent hardness of the sprocket teeth

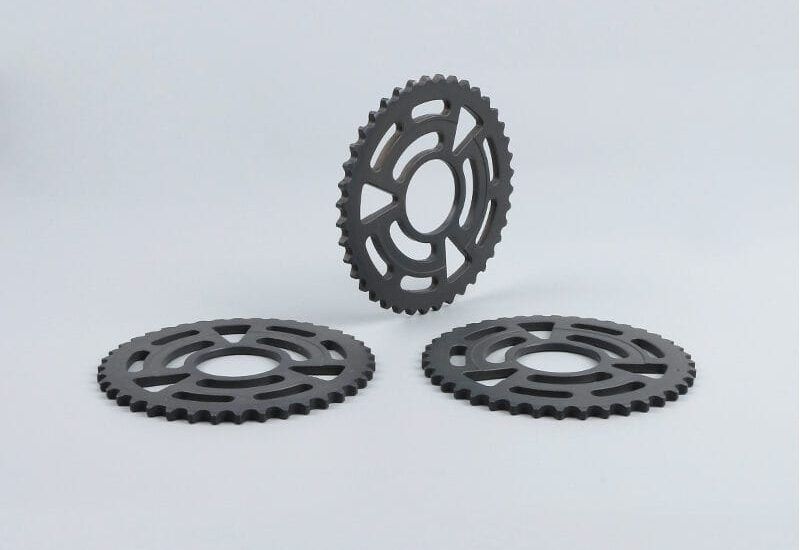

custom-rear-sprocket 4

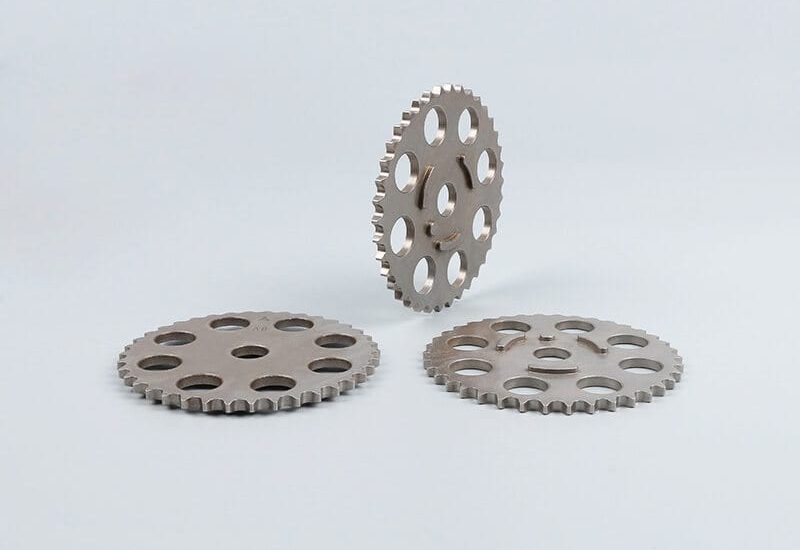

custom-sprockets-for-motorcycles 4

Advantages of PM Camsahaft Sprocket

Cost-Effectiveness
Powder metallurgy offers a cost-efficient solution for mass-producing camshaft sprockets, reducing material waste and minimizing processing steps.

High Tooth Profile Accuracy
As a near-net-shape process, powder metallurgy achieves tooth profile accuracy of sintered camshaft sprockets up to DIN grade 7.

Green and Sustainable
Powder metallurgy is a sustainable manufacturing method, consuming less energy and producing lower emissions compared to casting and machining.

Custom Camshaft Sprocket Specifications

This table shows BLUE’s custom camshaft sprocket manufacturing capabilities, including materials, density, hardness, tolerances and surface treatments.

AttributeValue
MaterialMPIF 35, FC-0205. FC-0208, FN-0205, FD-0208
Sintered Density6.6-7.0g/cm3
Hardness65-90 HRB
Surface TreatmentBlackening, Heat Treatment
Bore Tolerance±0.01 mm
Tooth AccuracyISO/DIN 6-8

Powder Metallurgy Manufacturing Process

Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.

14-Powder Metallurgy-Designing

Designing

Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.

Powder Metallurgy Compacting Mold

Tooling

Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.

13-Powder Metallurgy-Mixing

Mixing

Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.

16-Powder Metallurgy-Compacting

Compacting

Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.

17-Powder Metallurgy-Sintering

Sintering

Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.

18-Powder Metallurgy-Sizing

Sizing

Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.

20-Powder Metallurgy-Machining

Machining

Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.

19-Powder Metallurgy-Vibrating

Tumbling

Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.

21-Powder Metallurgy-Blacking

Blackening

Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.

22-Powder Metallurgy-Hardening

Hardening

Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.

22-Powder Metallurgy-Inspecting

Inspecting

The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.

23-Powder Metallurgy-Packaging

Packaging

BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.

BLUE's Powder Metallurgy Manufacturing Equipment

BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace,  sizing press, CNC machining equipment, hardening furnace, etc.

Related Sintered Parts

As a leading supplier of PM in China, BLUE offers a wide range of standard powder metallurgy parts, including shock absorber parts, timing sprockets, timing pulleys, and oil pump rotors without mold fees.

shock-absorber-valves 1

Shock Absorber Part

BLUE delivers high quality shock absorber parts, including valves, pistons, and guides, with tight tolerances.

Powder-Metal-Sprocket 3

Timing Chain Sprocket

BLUE timing chain sprockets with precision teeth profile and holes, which fit perfectly with your chain and timing sprocket.

Powder-Metallurgy-Timing-Pulley 3

Timing Belt Pulley

Our timing pulleys are dimensionalally accurate and pair well with timing belts to smoothly transmit synchronous rotational motion.

oil-pump-drive-gear 1

Oil Pump Gear

BLUE's oil pump gears have good surface finish, tight torlerances and excellent position tolerances to achieve best engine performance.

FAQ's

Here are some of the questions we get asked often.  If yours isn’t answered, don’t hesitate to contact us, we’re happy to help!

A camshaft sprocket is a gear part that attaches to the timing camshaft and works with the timing chain to synchronize the camshaft’s movement with the crankshaft.

This synchronization is important for precise opening and closing of the engine’s intake and exhaust valves.
