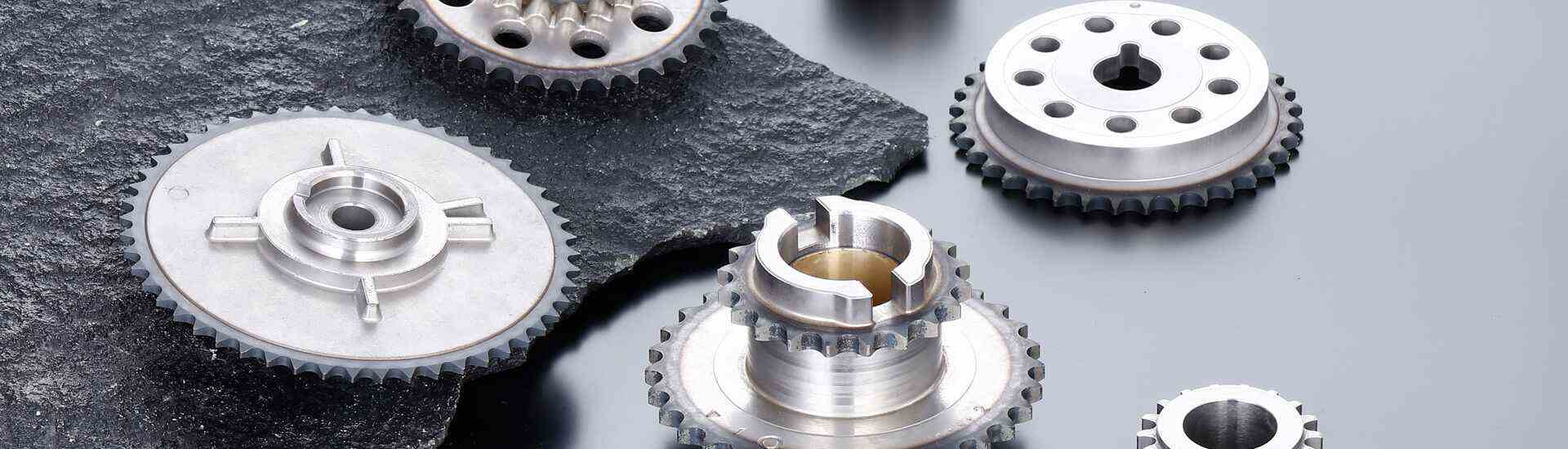

Timing Chain Sprocket - BLUE
BLUE provides 500 standard timing chain sprockets including camshaft sprocket and crankshaft sprocket without mold fee. Our timing sprockets are applied to Toyota, Honda, Volkswagen, BMW, Audi, Chevrolet, Peugeot, etc.
Why Choose BLUE?
We have established ourselves as a reliable supplier of timing chain sprocket, offering free mold design service,, fast shipping, and competitive prices from China.
BLUE High Quality Standards
BLUE assurethe quality of your timing sprockets with an ISO 9001:2015 certified quality management system. Free samples are available for testing.
Standard Timing Sprocket Shop
BLUE has a full range of standard timng chain sprockets in stock for fast delivery. Visit our standard parts shop to find the exact match for your applications.
Free Mold Design Service
With over 20 years of expertise in mold design, BLUE offers free, high-precision mold design services to meet your customized needs. Let our experience work for you!

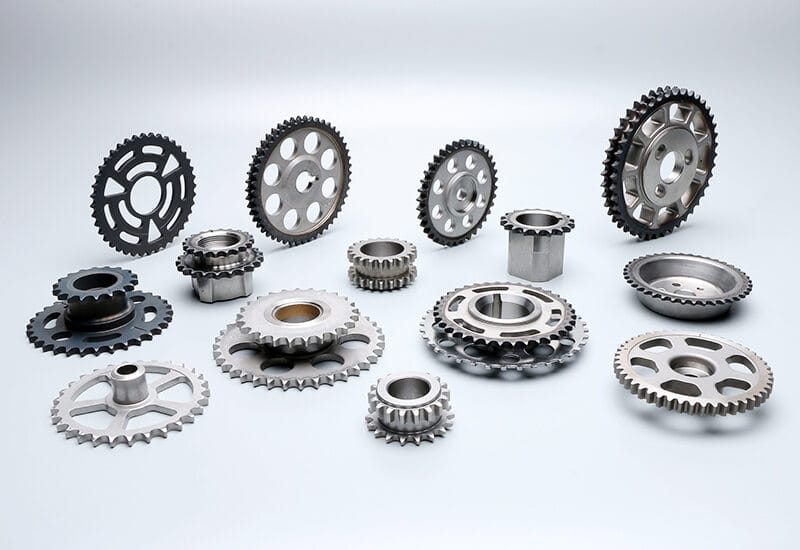

BLUE Timing Sprocket in China
BLUE offers a wide range of standard sintered timing chain sprocket with high sintered density and great mechanical strength.

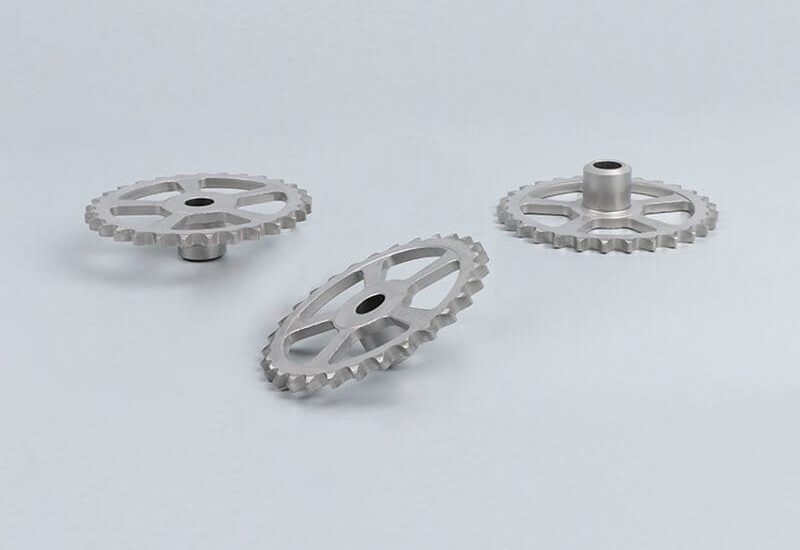

Powder Metallurgy Sprocket
BLUE powder metallurgy sprocket features tight hole tolerance, good compressive strength and durability.

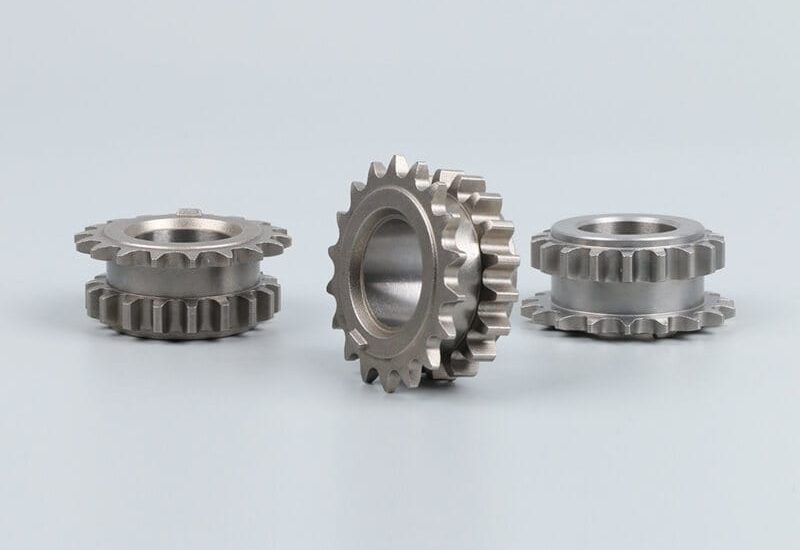

Timing Sprocket
BLUE timing sprocket uses MPIF 35 FC-0205 as raw material, and has a reliable structure after sintering.
Powder Metal Sprocket
BLUE powder metal sprocket is made of 35 FC-0205, which has good hardness and corrosion resistance after steam treatment.
Custom Chain Sprocket
BLUE can offer custom timing chain sprockets for our clients according to specific requirements and provide free mold design services.
Sintered Sprocket
This sintered timing sprocket is used in the Land Rover Discovery II and Defender 2.5 Diesel TD5 models.

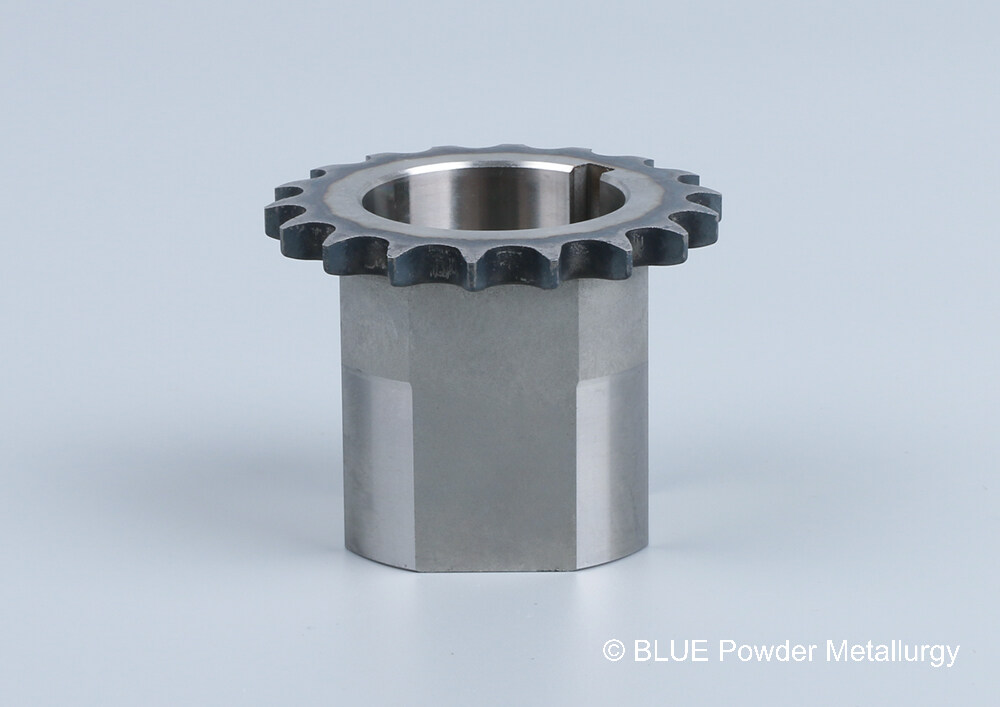

Crankshaft Sprocket Gear
BLUE crankshaft sprocket gear has a tight tolerance within ±0.015mm, used in BMW engines.
Sintered Metal Sprocket
This sintered metal timing chain sprocket is compatible with the Audi/Skoda/Seat vehicles equipped with 1.4 TSI and 1.6 FSI engines.
Engine Timing Crankshaft Sprocket
BLUE engine timing crankshaft sprocket has good mechanical strength and durability, specially used in toyota tacoma.
Sintering Metal Sprocket
Our sintering metal sprocket has high tooth profiles and inner diameter accuracy, and is precisely matched with the camshaft and crankshaft.
BLUE Timing Chain Sprocket Advantages
BLUE’s powder metallurgy auto parts are produced under the IATF 16949: 2016 quality management system.
We provide you with timing chain sprockets with precision teeth and holes, which fit perfectly with your chain and camshaft or crankshaft.
BLUE timing chain sprocket teeth are surface-hardened to a high hardness of 40HRC, offering excellent strength and wear resistance
Our timing chain sprockets have a density of up to 7.0 g/cm3 after sintering and have good mechanical properties.
Standard Timing Sprocket Supplier
BLUE is one of the largest powder metallurgy standard parts companies in China, we provide a wide range of timing sprockets.
Our standard timing chain sprockets include camshaft sprockets and crankshaft sprockets.
BLUE standard timing chain sproket has good mechanical strength and strict dimensional tolerances.
Download our standard timing chain sprockets product list for free by clicking below.
Sintered Timing Chain Sprocket Benefits
Cost-Effective Mass Production
Compared to machined timing sprockets, powder metallurgy timing chain sprockets generate less material waste and require fewer processing steps.
Tight Tolerances
Sintered timing chian sprockets can achieve strict tolerances of ±0.01mm after the sizing process.
High Quality Consistency
Powder Metal timing chain sprockets offer excellent batch-to-batch quality consistency.
What is a Timing Chain Sprocket?
Timing sprockets are basic parts of the timing system in an internal combustion engine.
Connected to the camshaft or crankshaft, they drive the timing chain, ensuring the camshaft and crankshaft remain synchronized.
This synchronization allows the engine’s intake and exhaust valves to open and close at the correct times, matching the piston’s movement.
Custom Timing Chain Sprocket Specifications
The following table shows BLUE’s production capabilities for timing chain sprockets, including material, density, hardness, tolerance, diameter range, length, surface treatment, etc.
| Attribute | Value |
|---|---|
| Material | MPIF 35, FC-0205. FC-0208, FN-0205, FD-0208 |
| Density | 6.6-7.0g/cm3 |
| Hardness | 65-90 HRB |
| Surface Treatment | Blackening |
| Tolerance | ±0.01 mm |
Powder Metallurgy Manufacturing Process
Powder metallurgy is a precision manufacturing process with a continuing and stable accuracy of up to 0.01mm, which requires strict control at each stage to ensure the quality of the final part. Any deviation or error during the process may result in the rejection of the entire batch.
Designing
Mold design is a critical process that must consider the desired part geometry, material properties, production volume, and cost-effectiveness.
Tooling
Powder metallurgy tooling includes upper and lower punches, die, and core rod. The mold needs to have excellent strength, hardness and wear resistance.
Mixing
Mixing is the process of blending metal powder with binders to improve its uniformity and fluidity, promoting better material consistency.
Compacting
Conpacting is a process that presses metal powder into mold cavity through powder compaction machine to get a green compact part.
Sintering
Sintering heats the green compact to a temperature below its melting point in a controlled atmosphere to obtain the desired mechanical properties.
Sizing
Sizing corrects dimensional deviations after sintering and enhances product accuracy. It requires an additional, simpler set of molds compared to the forming mold.
Tumbling
Tumbling removes burrs and flash from a part's surface by vibrating it with abrasive media, such as stone or ceramic, resulting in a smoother finish.
Machining
Machining can achieve complex shapes that cannot be pressed by powder metallurgy, such as transverse holes and screw threads.
Blackening
Blackening process, or steam treatment, forms an oxide layer to prevent rust and increase hardness, offering a cost-effective solution.
Hardening
Hardening enhances the material's strength and hardness through carburizing or nitriding, resulting in improved wear resistance and fatigue life.
Inspecting
The inspecting process is always a critical step that ensures quality and performance through BLUE inspection standards before shipping.
Packaging
BLUE's packaging process uses anti-rust paper, vacuum, blister and other methods to ensure that the product is intact during transportation.
BLUE's Powder Metallurgy Manufacturing Equipment
BLUE has a complete range of advanced powder metallurgy production equipment, including 25T to 1000T compaction press, conveyor belt sintering furnace, vacuum sintering furnace, sizing press, CNC machining equipment, hardening furnace, etc.
- Compacting
- Sintering
- Inspecting
- Machining
- Packaging
Related Powder Metallurgy Auto Parts
As the largest supplier of powder metallurgy standard parts in China, BLUE offers a wide range of standard auto parts with no mold fee required.
Water Pump Pulley
Our water pump pulleys feature tight tolerances, high apparent density, and superior mechanical strength.
Timing Belt Pulley
Our timing pulleys are dimensionalally accurate and pair well with timing belts to smoothly transmit synchronous rotational motion.
Water Pump Flange
Our pump flanges have the advantages of multiple models, tight tolerances and high mechanical strength.
Oil Pump Rotor
Our oil pump rotors have good surface finish, tight dimensional accuracy and excellent position tolerances to deliver optimal engine performance.
Get Your Timing Chain Sprocket Now!
