Sintered Nickel Filter | BLUE
BLUE offers a variety of sintered nickel filters, including nickel wire mesh, nickel felt, porous nickel sheets, and nickel cartridges. We provide standard and customized options, with porous nickel sheets available in a maximum size of 1,000 × 330 mm.
BLUE's Sintered Nickel Features
BLUE brings rich experience in manufacturing sintered filters, offering sintered porous nickel, nickel wire mesh, nickel cartridge and nickel fiber felt.
With precise control over sintering temperature and time, we ensure consistently high quality in mass-produced sintered nickel products.
BLUE has advanced processing equipment that can produce sintered nickel felt with a maximum size of 1,000×1,000 mm.
We also customize the type and number of layers in nickel wire mesh to meet your specific requirements.

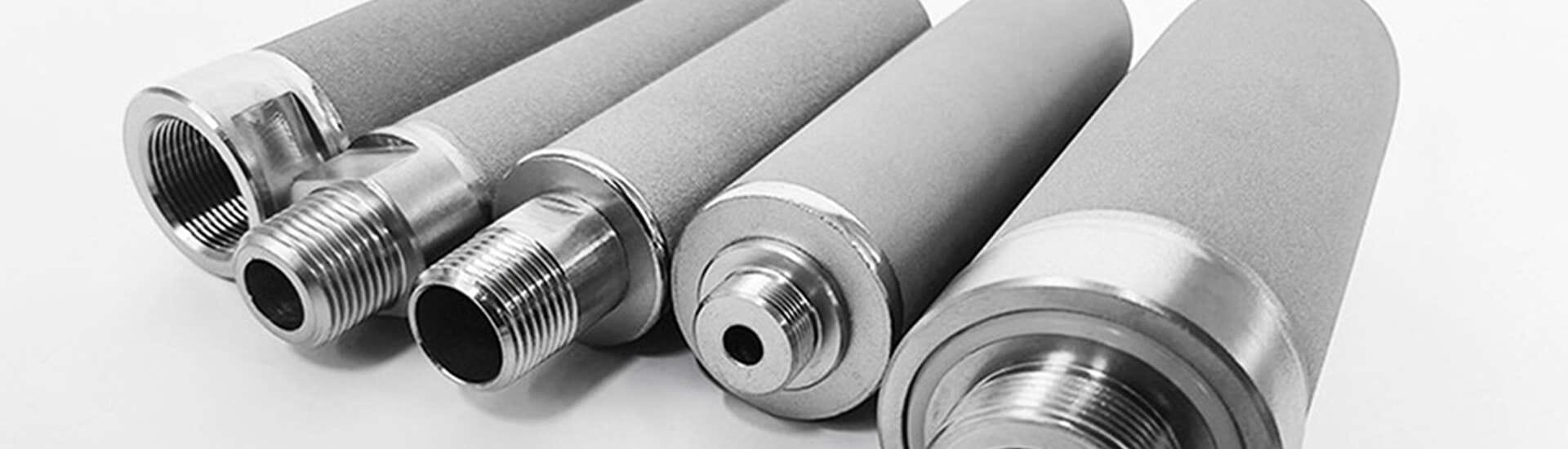

Standard Sintered Nickel Filter Cartridges
BLUE offers a collection of standard sintered nickel filter cartridges for quick delivery.
Material: Inconel 600, Inconel 625, Hastelloy C22, Hastelloy C276, Hastelloy X, Monel 400.
Size: Diameter: ⌀6 mm to ⌀120 mm; Length: 100 mm to 3,000 mm.
We also provide fittings, including imperial and metric threads.
Download our product list to find the perfect match for your applications!
Advantages of Nickel Fiter
Sintered nickel offers excellent resistance to high pressure and maintains stability at temperatures up to 1200°C.
Porous nickel filters have outstanding corrosion and oxidation resistance.
Nickel wire mesh, composed of multiple layers of metal, features strong structural rigidity and a long service life.
Sintered nickel felt boasts high porosity, excellent air and water permeability, a large specific surface area, and uniform pore distribution.
Applications of Sintered Nickel
Medical field
Porous nickel filter has good biocompatibility and is used for filtering medical supplies.
Electrode material
Sintered nickel fiber felt has good corrosion resistance and electrical conductivity and can be used as a diffusion medium for the anode of hydrogen fuel cells.
Aerospace
Porous nickel filter has excellent high temperature resistance and is an ideal filter medium for filtering high-pressure and high-temperature gases.
BLUE's Custom Sintered Nickel Capabilities
The following table is about the size, filtration rating, thickness, porosity, and operating temperature and pressure of BLUE customized sintered nickel.
| Sintered Nickel Type | Porous Sheet/ Disc | Wire Mesh | Fiber Felt | Cartridge |
|---|---|---|---|---|
| Maximum Size | 1,000*330mm | 1,200*1,200mm | 1,000*1,000mm | Diameter: ⌀6-⌀120 mm Length: 100-3,000 mm |
| Filter Rating | 0.5 – 100 μm | 0.2 – 100 μm | 1 – 100 μm | 0.2 – 50 μm |
| Thickness | 1 – 10mm | 0.5 – 10 mm | 0.5 – 5 mm | 0.2 – 5 mm |
| Porosity | 25% – 50% | 30% – 45% | 50% – 94% | 25% – 50% |
| Max. Operating Temperature | 1200°C | 1200°C | 1200°C | 930°C |
| Max. Operating Pressure | 3MPa | 3MPa | 3MPa | 3MPa |
Download Product List
Sintered Filter Disc
BLUE's sintered filter discs are available in bronze, stainless steel, and plastic, with filtration accuracy ranging from 0.5 to 100μm.
Sintered Muffler
BLUE's sintered silencer has uniform pores, significant noise reduction effect, long service life, and can be customized in various sizes.
Sintered Ceramic Filter
Sintered ceramic filter is a high-performance filter with high temperature resistance, corrosion resistance, and good surface finish.
Sintered Filter Cartridge
BLUE's sintered filter cartridge has excellent filtration efficiency and can be customized in lengths up to 3000mm.
Get Your Sintered Nickel Today!
