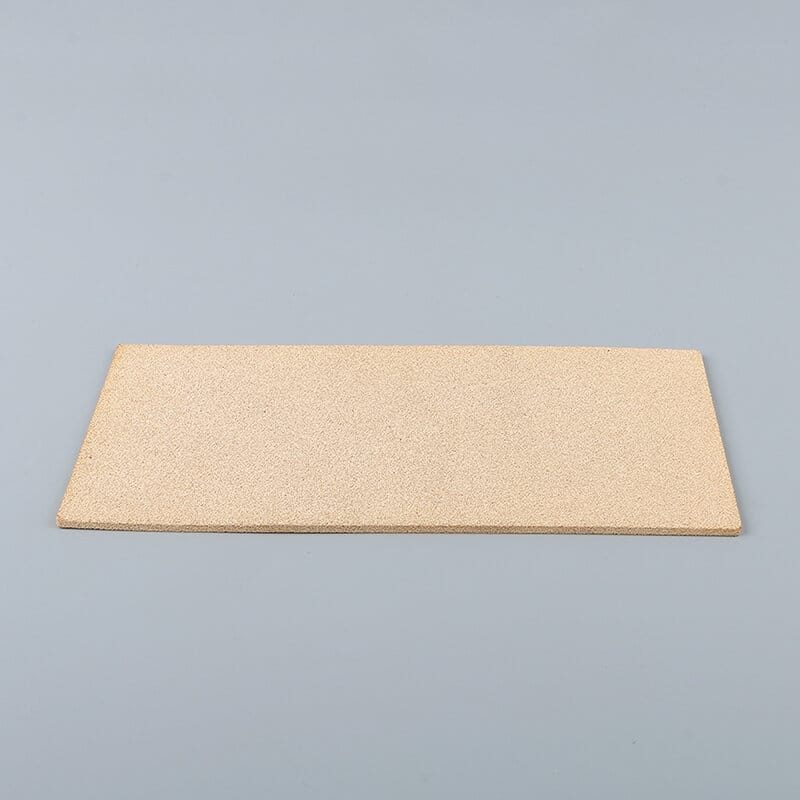

Sintered Plate - BLUE
BLUE manufactures high-quality sintered plates up to 1000 mm × 330 mm in size. Options include single-layer porous plates with thicknesses from 0.4 mm to 3 mm, multi-layer plates from 3 mm to 20 mm, and small sintered metal plates up to 70 mm thick.
Customized Sintered Metal Plates Specifications

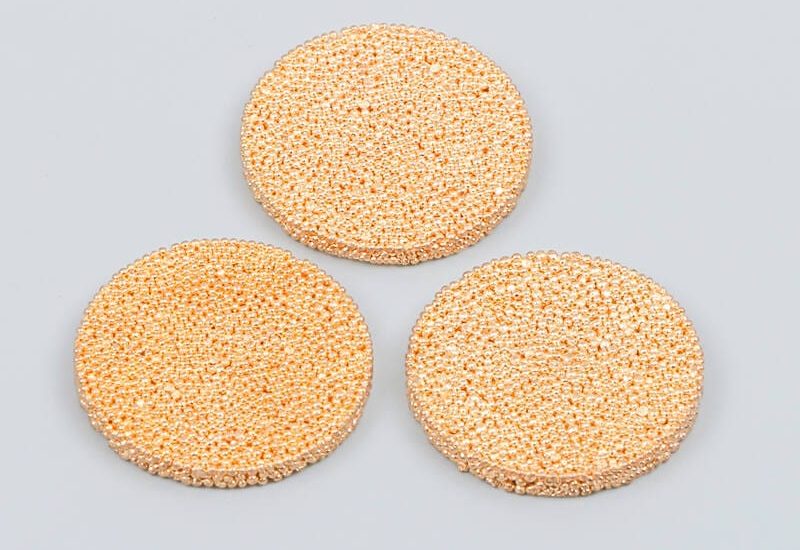

Here is our production capability for sintered metal plates. For other materials, custom dimensions, or specific filtration requirements, please contact us. We also manufacture sintered filter disc with larger thickness.
| Attribute | Stainless Steel | Titanium | Bronze | Nickel |
|---|---|---|---|---|
| Maximum Size | 1000mm × 330mm | 1000mm × 330mm | 1000mm × 300mm | 1000mm × 330mm |
| Filter Accuracy | 0.5 – 100 μm | 0.5 – 80 μm | 1 – 100 μm | 1 – 70 μm |
| Thickness | 0.5 – 10 mm | 0.5 – 3 mm | 1 – 30 mm | 0.5 – 20 mm |
| Porosity | 25% – 50% | 25% – 45% | 30% – 45% | 25% – 45% |
| Maximum Operating Temperature | 600°C | 300°C | 450°C | 1000°C |
| Maximum Operating Pressure | 3MPa | 2.5MPa | 2.5MPa | 3MPa |
BLUE's Sintered Plates Advantages
BLUE has a full set of process capabilities for manufacturing sintered filter, providing you with a one-stop solution for sintered plates.
Our sintered fmetal plates are made of stainless steel, titanium, or nickel powder through isostatic pressing and vacuum sintering, offering high mechanical strength and corrosion resistance.
BLUE sintered nickel plate can withstand high temperatures, reaching up to 1000°C or higher.
All sintered filter plates undergo filtration accuracy testing, pressure testing, permeability testing before delivery to ensure strict quality control.
Standard Sintered Plate Supplier
As a professional sintered filter supplier, BLUE always offers a variety of standard sintered metal plates.
Common standard filtration accuracies for sintered plates include 0.2 μm, 0.5 μm, 1 μm, 5 μm, 10 μm, 20 μm, and 50 μm.
If you need to customize the filtration accuracy, size, or thickness of a sintered metal plate, our team is always here to help.
In addition to manufacturing sintered filter plates, BLUE also always produces sintered metal tubes, sintered silencers, sintered filter discs, sintered cartridges, and sintered spargers.
Pros and Cons of Sintered Plate
Sintered metal plate is made of metal powder vacuum sintering, with uniform pore size and high filtration efficiency.
Our sintered plate filter has good chemical stability, acid and alkali corrosion resistance, and anti-oxidation advantages.
BLUE metal plate can meet food safety and pharmaceutical requirements.
Those sintered plates that are too thin or too large are prone to warping and it is difficult to ensure flatness.
The thickness of a single layer of the sintered metal plate does not exceed 3 mm, while the sintered filter disc can reach up to 30 mm.
Applications of Sintered Plate
Removing impurities from lubricating and hydraulic oils in mechanical equipment.
Filtering corrosive gases and liquids in the chemical industry.
Purifying impurities or contaminants in drinking water.
Filtering high-temperature and high-pressure gas filtration.
Handling liquid medicines in the pharmaceutical industry.
Download Product List

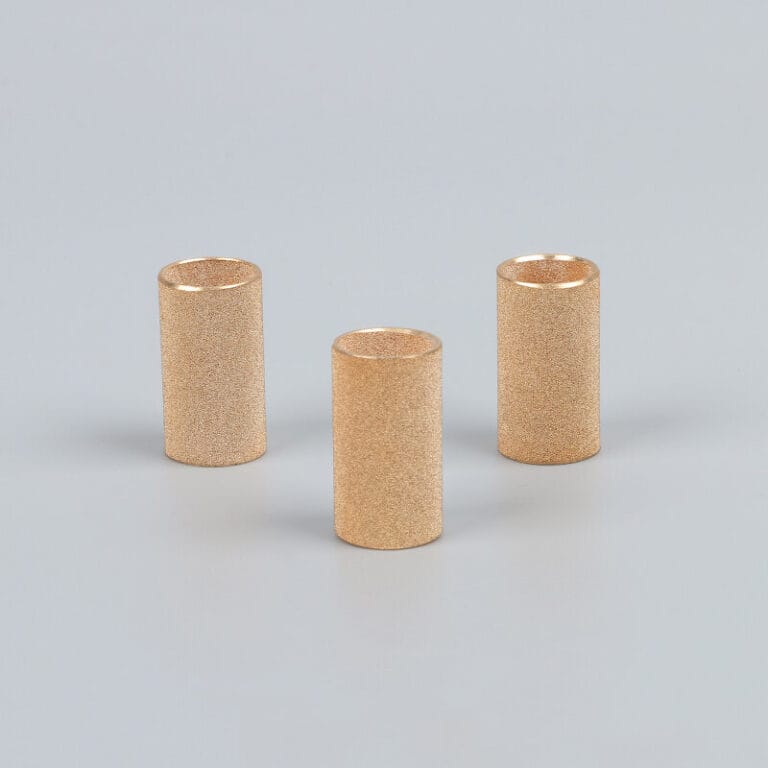

Sintered Metal Tube
BLUE's sintered bronze tubes have high filtrationrating and can effectively filter particles, suspended matter and other impurities.
Sintered Muffler
BLUE's sintered silencer has uniform pores, significant noise reduction effect, long service life, and can be customized in various sizes.
Sintered Ceramic Filter
Sintered ceramic filter is a high-performance filter with high temperature resistance, corrosion resistance, and good surface finish.
Sintered Filter Cartridge
BLUE's sintered filter cartridge has excellent filtration efficiency, and can be customized in lengths up to 3000mm.
Get Your Ideal Filtration Solution Today!
